Breather plug TSL

filling

Product description

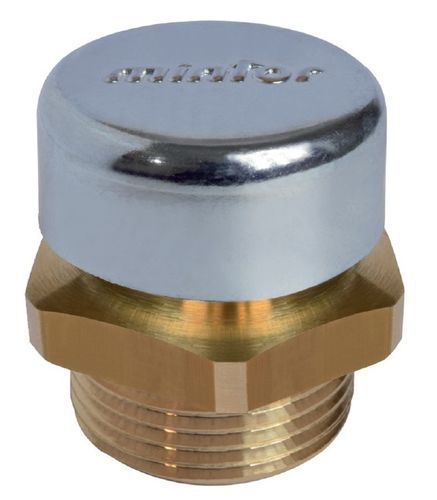

Brass filling plug protected by a zinc-coated steel cover; no internal valve. Supplied without external seal. Available on request with nickel-plating, different calibrations or in aluminum alloy.

Note
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.

Technical Info - GAS ISO 228
CODE | THREAD | d | h | f | e | s | WEIGHT (g)
1GTSL00O | 1/8" | 14 | 17 | 8 | 14 | 15.6 | 18
1GTSL10O | 1/4" | 16.5 | 19 | 8 | 17 | 19 | 25
1GTSL20O | 3/8" | 21 | 19 | 8 | 22 | 24.5 | 44
1GTSL30O | 1/2" | 21 | 22 | 10 | 24 | 26.8 | 61
1GTSL40O | 3/4" | 30 | 24 | 12 | 32 | 36 | 108
1GTSL50O | 1" | 30 | 29 | 14 | 40 | 44.5 | 160

Technical Info - MB METRIC
CODE | THREAD | d | h | f | e | s | WEIGHT (g)
1MTSL00O | 10 x 1 | 14 | 17 | 8 | 14 | 15.6 | 18
1MTSL10O | 14 x 1,5 | 16.5 | 19 | 8 | 17 | 19 | 27
1MTSL20O | 16 x 1,5 | 21 | 19 | 8 | 22 | 24.5 | 44
1MTSL30O | 18 x 1,5 | 21 | 19 | 8 | 22 | 24.5 | 45
1MTSL40O | 20 x 1,5 | 21 | 21.5 | 10 | 24 | 26.8 | 64
1MTSL50O | 22 x 1,5 | 21 | 21.5 | 10 | 27 | 30.5 | 76

Characteristics / technical specifications

• Model: TSL
• Function: Filling plug with free vent
• Material: Brass plug
• Cover: Zinc-coated steel cover
• Internal valve: None (without internal valve)
• Supply condition: Supplied without external seal
• Optional treatments: Nickel-plating available on request
• Available materials: Aluminum alloy on request
• Available calibrations: Different calibrations on request
• Standards/threads: GAS ISO 228 and MB metric variants (see tables above for codes and dimensions)
• Installation constraint: Not designed to operate in inverted position; testing/installation inverted may compromise operation
