Depth sensor LVF

Description

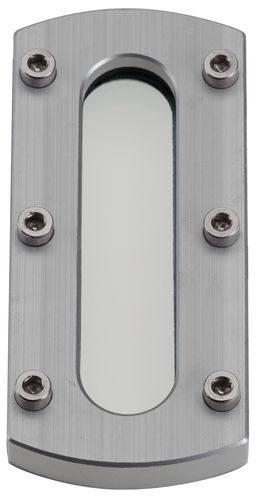

Flanged vertical level indicator. Vertical level indicator made of aluminium alloy with natural anodisation and transparent inspection window in Pyrex glass, suitable for temperatures from -20°C to +200°C (max). Supplied complete with external fibre washer and screws. Recommended pressure: 2 bar.

Accessories / Supplied

• External fibre washer
• Screws

Dimensions and weights (table)
TYPE | CODE | L | R | l | r | v1 | v2 | h | a | N. HOLES | WEIGHT (g)
LVF 60 | 1VLVF10A | 60 | 45 | 28 | 35 | 39 | 18 | 11.5 | 4 | 4 | 61
LVF 80 | 1VLVF20A | 80 | 45 | 45 | 35 | 59 | 18 | 11.5 | 4 | 4 | 80
LVF 100 | 1VLVF30A | 100 | 45 | 35 | 35 | 78 | 18 | 11.5 | 4 | 6 | 99

Characteristics / technical specifications

• Material: aluminium alloy with natural anodisation
• Inspection window: Pyrex glass
• Operating temperature range: -20°C to +200°C (max)
• Recommended pressure: 2 bar
• Supply includes external fibre washer and screws
• Available types/sizes: LVF 60, LVF 80, LVF 100 (see table for codes, dimensions and weights)
