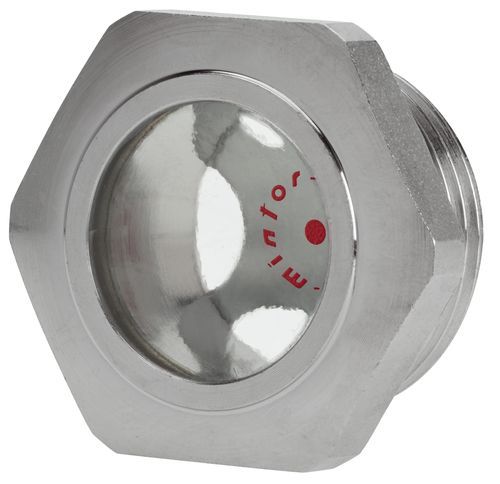

Visual level sensor TLAXP

Description
Visual level indicator with a nickel-plated steel body and a glass inspection window for high-pressure applications. Designed for operating pressures up to 30 bar and an operating temperature range from -40°C to +250°C (max).
Application:

• Compressors
• Construction machinery
• Earth-moving equipment

Technical table
TYPE | CODE | THREAD | f | t | v | e | s | WEIGHT (g)
TLAXP3G | 1GTLXP3A | 1/2" | 10.5 | 8.5 | 14 | 27 | 30.2 | 42
TLAXP4G | 1GTLXP4A | 3/4" | 12.5 | 8 | 19 | 32 | 35.7 | 53
TLAXP5G | 1GTLXP5A | 1" | 15.5 | 8.5 | 25 | 40 | 44.5 | 94

Characteristics / technical specifications

• Model: TLAXP
• Body material: nickel-plated steel
• Inspection window: glass
• Maximum operating pressure: 30 bar
• Operating temperature range: -40°C to +250°C (max)
• Typical applications: compressors, construction machinery, earth-moving equipment
• Available types and codes: TLAXP3G (1GTLXP3A), TLAXP4G (1GTLXP4A), TLAXP5G (1GTLXP5A)
• Weights: 42 g (TLAXP3G), 53 g (TLAXP4G), 94 g (TLAXP5G)
