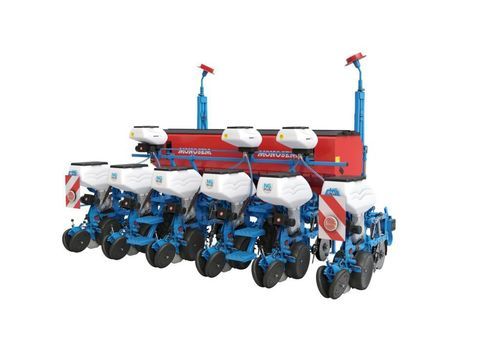

Pneumatic precision seed drill NG PLUS / NG PLUS E

disc4-row12-row

Overview
A universally recognized pneumatic single-seed planter offering optimized emergence, high stability and consistent performance in a wide range of soil and tillage conditions. Custom-configurable metering unit, compatible with many seed types and available in mechanical or electric drive configurations.

Applications & Crop Types

• Maize
• Sugarbeet
• Sunflower
• Rapeseed
• Beans
• Soya beans
• Sorghum
• … and other row crops

Main Advantages

• Highly stable metering unit with Monoshox suspension for shock absorption and reduced vibration.
• Outstanding seed placement and emergence consistency due to PRO wheel and precise furrow formation.
• Versatile: compatible with traditional tillage, low-till and strip-till systems.
• Configurable for 4 to 16 rows and inter-row spacings from 37.5 to 80 cm.

Metering unit (NG PLUS / NG PLUS E)
Custom-configurable metering unit, retrofit-ready. Key functional features include:

• More convenient: new metering box opening system for fast access.
• Easier to adjust: integrated pressure management system to control unit pressure on the ground.
• Faster: Monoshox suspension system for improved ground following and vibration reduction.
• Mechanical or electric drive options for the metering box (electric allows in-cab settings and section control).

Functional elements and components

• Unit disengagement system: standard safety slip clutch; manual, mechanical or electric disengagement; can be controlled manually or from the cab.
• Pressure and shock absorption system: two adjustable pressure springs plus Monoshox suspension to maintain ground contact and limit vibration.
• Retraction system: manual or hydraulically assisted; includes suction management and raising of the rear closing wheel unit.
• Seed chute: available with or without counting sensor.
• Quick-release tips: patented tool-free tip replacement for fast adaptation.
• Seed line opening system: two large-diameter discs (380 mm) in heavy-duty forged steel.
• Seed line clearing system: adjustable, quick to change, tool-free; adapts to planting conditions to remove debris and clods.
• Furrow creation: standard or winged tips creating a consistent V-shaped furrow for precision seed placement; ultra-durable carbide (MONOCARB) tips available.
• Seed hoppers: heavy-duty translucent plastic hoppers available in 16 L and 52 L; hinged covers and fully sealed during work.
• Metering box drive: mechanical or electric drive systems; seed flow adjustable inside or outside the cover.
• Seed flow management: adjustable inside/outside the cover for precise calibration.
• Seed line closure system and closing wheels: multiple wheel types and pressure/angle adjustments to suit soil types and ensure consistent closure.
• Gauge wheels: wide, narrow or spoked options positioned in line with the seed drop to ensure stable working depth and depth consistency.
• PRO wheel: cast iron or aluminum with stainless-steel tire to press the seed for improved emergence; independent wheel for contour following.

Metering system & distribution
The metering box is the core of precision planting: stainless steel distribution disc with low sensitivity to seed coatings, precision bronze singulator to avoid multiples, aluminum alloy box cover, captive handwheels, transparent viewing hatch and a total-emptying system. Vacuum and singulation pressure adjustment is available (patented system) to suit various seed sizes and populations.

Microgranule (Microsem) system
Auger-based microgranule distribution (mechanical or electric) to position insecticide, molluscicide or fertilizer precisely next to the seed. Features include two augers with agitators, even distribution via a finger wheel, quick emptying, adjustable rates (in-cab for electric), and the EasyAdjust app for assisted adjustment. Hoppers typically 20 L (optional 40 L) and optional section cut-off on electric models.

Fertilizer options
Multiple fertilizer configurations are available: standard mounted hoppers, high-capacity mounted hoppers, auger + agitator distribution with blue (standard) and red (high-output) auger choices to adapt application rates. Fertilizer units may be driven electrically or mechanically for variable rate adjustment.

Equipment & Options

• Clod removers: fixed, flexible bracket or rotary versions depending on soil conditions.
• Openers: disc openers, circular coulters, coulter tines for no-till or stony soils.
• Various gauge wheels (wide, narrow, spoked) to match soil type and inter-row spacing.
• MONOCARB carbide tips: greatly increased wear life and consistent V-shaped furrow formation.
• SeedWatch sensor: high-precision seed counting in real time, robust for dusty conditions and high seed populations.
• PRO wheel: aluminum or cast iron options, stainless steel tire and scraper to avoid clogging.

Frames & chassis
A wide range of frames is offered to suit configurations and transport requirements: rigid monobar, rigid monoblock, rigid double-bar, monoblock single or double telescopic, MONOBLOCK2 comfort telescopic, EXTEND and floating double-bar folding frames and CRT folding frames. Frames support different numbers of metering units, working widths and transport widths to adapt to crop and tractor compatibility.

Why choose NG PLUS / NG PLUS E

• Unfailing stability with Monoshox suspension.
• Unprecedented versatility: metering compatible with 70+ seed types.
• Laser-like precision: patented PRO wheel and double-disc planting concept for consistent seed depth and emergence.

caractéristiques / spécifications techniques

• Crop types: Maize, sugarbeet, sunflower, rapeseed, beans, soya beans, sorghum, etc.
• Number of rows: 4 to 16 rows.
• Inter-row spacing: 37.5 to 80 cm.
• Tillage compatibility: Traditional, Low till, Strip till.
• Drive options: Mechanical drive or Electric drive (ISOBUS-compatible features available for electric version).
• Hopper capacities: 16 L and 52 L (options depend on configuration).
• Seed hoppers: heavy-duty translucent plastic, hinged lockable covers for larger hoppers.
• Openers: 380 mm discs (standard), heavy-duty forged steel; winged tips available.
• Metering box: stainless steel disc 1.5 mm, bronze singulator, aluminum box cover, transparent viewing hatch, total-emptying system.
• Microsem hoppers: standard 20 L (optional 40 L).
• Seed counting: SeedWatch sensor — precise counting up to high seed populations, robust to dust/clogging.
