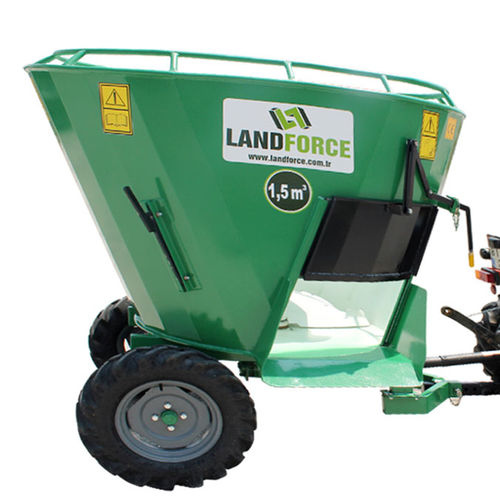

Vertical feed mixer
towedsingle-augerPTO-driven

vertical feed mixer
vertical feed mixer
vertical feed mixer
vertical feed mixer
vertical feed mixer
vertical feed mixer
vertical feed mixer
vertical feed mixer
Add to favorites
Compare this product


Characteristics

Auger orientation
vertical
Mobility
towed
Number of screws
single-auger
Other characteristic
PTO-driven
Capacity in m³

1.5 m³
(53 ft³)

Description

Length 2350 mm Width 1400 mm Height 1850 mm Max. Height (with Scoop) ???? Track Width 1240 mm Weight 533 Kg. Number of screws 1 Screw rpm 50 rpm Number of fixed blades 2 Number of screw blades 5 Minimum power needed 18-20 HP Motion Transmission System Tractor Articulated Mil Gear Box Electrical Motor ???? Rim 450/13- 4 Stud Tyre 6.50/80/13 Wheel Type ???? Feed Unloading Port Manual0 Adjusted Lever Jack Rotating TYPE Sheet Thickness Bucket 5 mm Sheet Thickness Base 8 mm Chassis Box Profile 40*80*3 mm Screw 800-420X350X168X6 mm Upper Reinforcement and Protection 33,7 * 3,25 mm Pipe
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
