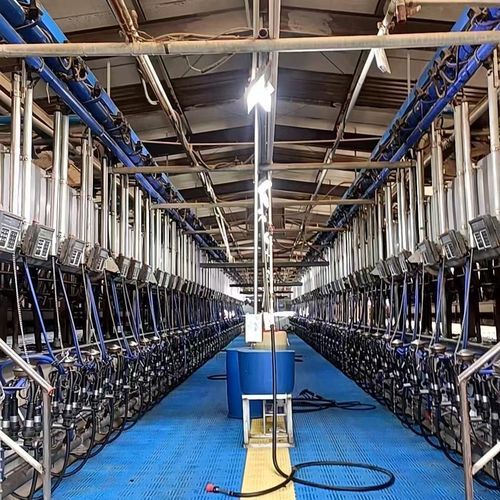

Parallel milking parlour NEMNP25

for cowsherringbonerapid exit

Product summary
Parallel parlour milking system designed for efficient, modular dairy farm operation. Adaptation compatible with DeLaval machines. Configurations from 2X4 to 2X60 milking stations. ISO9001 and CE certified. Payment: prepayment + final payment. Services: installation, commissioning, quality assurance and after-sales support. Typical delivery lead time: 3–4 months.

System overview
Optimized layout, rigid stand structure, ergonomic cow stalls and integrated technical subsystems provide improved milking throughput and milk quality, reduced operating cost per head and support for phased farm expansion.

1. Stand structure design

• Modular shed system: welded connections for structural stability and extended service life.
• Parallel double-row layout: scalable from 8 to 120 stalls (2X4 up to 2X60) to suit different farm sizes.
• Fully automatic lifting function: enables group cow exit; shed resets within ~5 seconds after milking to increase throughput.

1.2 Materials and workmanship

• Main frame: 304 stainless steel or hot-dip galvanized steel compliant with agricultural corrosion standards.
• Robust stand design: minimizes vibration during milking and is suitable for small to large dairy farms.

1.3 Space optimization

• Compared with herringbone layouts, parlour length reduced by 15–20%, lowering construction footprint and related costs.
• High-density tail-to-tail arrangement reduces single-stall area by about 0.55 m², improving space utilization.

2. Cow stall functional configuration
2.1 Stall parameters

• Single stall width ≥ 1.2 m; depth 1.8–2.0 m, suitable for mainstream dairy breeds (e.g., Holstein).
• Front neck rail opening/closing/positioning driven by double-acting cylinders; each stall equipped with sequential gate guiding device and group release for simplified cow flow management.
• Push-pull entry gate: fully hot-dip galvanized, pneumatic control for smooth entry; front rail can fully open or use a quick-release gate for rapid exit.

2.2 Ergonomic optimization

• Automatic milking control and automatic cup removal to prevent over-milking and reduce manual handling time.
• Integrated intelligent electronic meters: milk yield measurement error ≤ 2%. Each flow meter includes a sampler interface for milk testing and analysis.

3. Supporting technical systems
3.1 Hygiene management

• CIP (Clean-in-Place) circulation cleaning with dual-channel acid and alkali flushing to meet food-grade pipeline cleanliness.
• Air filtration system: PM2.5 filtration efficiency ≥ 95% to reduce airborne contamination risk.

4. Typical technical parameters
Item — Specification range — Remarks
Processing capacity — 150–450 cows/hour — Single-shift throughput
Milking cycle — 8–15 minutes/batch — Includes entry and exit time
Power configuration — 18.5–22 kW — Includes vacuum pump and control system
Applicable scale — 300–3000 cows per farm — Supports modular expansion

5. Service support
Custom solution design, equipment installation and commissioning, operator training and lifetime technical support. Optional intelligent farm management system available.

6. Quality assurance

• Main structure service life: ≥ 10 years with normal maintenance.
• Key component warranty: 3 years (vacuum pump and control system).
• Certified to ISO 9001 quality management standard; CE marked.

7. Applicable scenarios

• Medium-intensity dairy farms.
• Demonstration breeding bases meeting government standards.
• Renovation or capacity upgrades for corporate dairy farms.

Technical specifications

• Model: NEMNP25
• Type: Parallel parlour milking machine (adaptation for DeLaval equipment)
• Size range: 2X4 — 2X60 milking stations (modular/scalable)
• Processing capacity: 150–450 cows/hour (single-shift)
• Milking cycle: 8–15 minutes per batch (including entry/exit)
• Power: 18.5–22 kW (vacuum pump and control system included)
• Applicable farm scale: 300–3000 cows (modular expansion)
• Main frame materials: 304 stainless steel or hot-dip galvanized steel
• Single stall dimensions: width ≥ 1.2 m; depth 1.8–2.0 m
• Automatic features: automatic milking control, automatic cup removal, intelligent electronic meters (yield error ≤ 2%)
• Hygiene systems: CIP dual-channel cleaning; PM2.5 air filtration ≥ 95% efficiency
• Certifications: ISO9001; CE
• Warranty: main structure life ≥ 10 years; key components 3-year warranty
• Delivery lead time: typically 3–4 months
