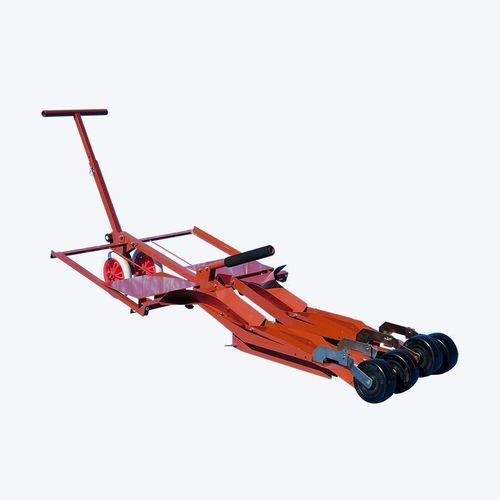

Pot transplanting machine HP-7Ⅳ

manual

Overview
The double-row human-powered transplanter for planting chainpots. The time- and labor-saving tool that transplants chainpots quickly. The HP-7Ⅳ plants 2 rows at once. The row spacing is adjustable between 12 cm to 60 cm (4.7″ to 23.6″).

Operation
The paperpot transplanter cuts a furrow, transplants, covers the seedling with soil, and presses the soil around the seedlings in a single pass. Being human-powered, it operates at the user’s pace and can be handled easily by one person.

Technical details
Dimensions (unit): 730×610×290 mm
Weight (unit): 23.5 kg
Height (adjustable): 736–981 mm
Width: 680 mm
Length (adjustable): 1627–1741 mm
Available paperpots: compatible with chainpots

Box unit specifications
Weight: 23.5 kg
Dimensions: 730×610×290 mm

Technical specifications

• Model: HP-7Ⅳ
• Operation: Human-powered transplanter for chainpots, double row (plants 2 rows at once)
• Row spacing: Adjustable between 12 cm and 60 cm (4.7″ to 23.6″)
• Functionality: Cuts a furrow, transplants, covers seedling with soil, and presses soil around seedlings in one operation
• Dimensions (unit): 730×610×290 mm
• Weight (unit): 23.5 kg
• Height (adjustable): 736–981 mm
• Width: 680 mm
• Length (adjustable): 1627–1741 mm
• Available paperpots: compatible with chainpots
• Box weight: 23.5 kg
• Box dimensions: 730×610×290 mm
