Pot transplanting machine

manual

Product description
Tractor-mounted unit designed to carry and operate two Paperpot Transplanters (HP-16) together with seedling racks and an operator seat, enabling continuous transplanting in the field.

Overview

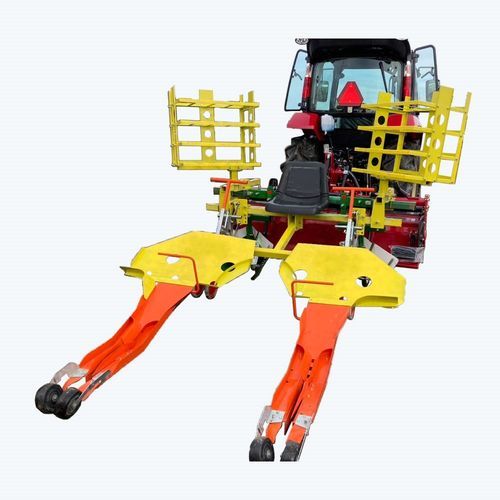

The unit includes two Paperpot Transplanters (HP-16), two seedling racks and an operator chair. The operator sits and links the chainpots between transplanters, replacing seedling trays as they empty. Up to 21 trays of chainpots can be loaded across the seedling racks and transplanters, allowing the tractor to work end-to-end in the field without stopping. The unit corresponds to the yellow parts shown in the images and is designed to attach to the square pipe of a tractor rotary attachment.

Detail information
Height: 2950 mm (9.7 ft.) — Transplanter included
Width: 1800 mm (5.9 ft.)
Length: 1500 mm (4.9 ft.)
Weight: 140 kg

Technical specifications

• Included components: Two Paperpot Transplanters (HP-16), two seedling racks, one operator chair
• Capacity: Up to 21 trays of chainpots can be loaded onto seedling racks and transplanters
• Attachment: Designed to attach to the square pipe of a tractor rotary attachment
• Height: 2950 mm (9.7 ft.) — Transplanter included
• Width: 1800 mm (5.9 ft.)
• Length: 1500 mm (4.9 ft.)
• Weight (unit): 140 kg
• Box unit weight: 140 kg
