Livestock shelter FSR

for horsesfor sheepgroup

Product overview

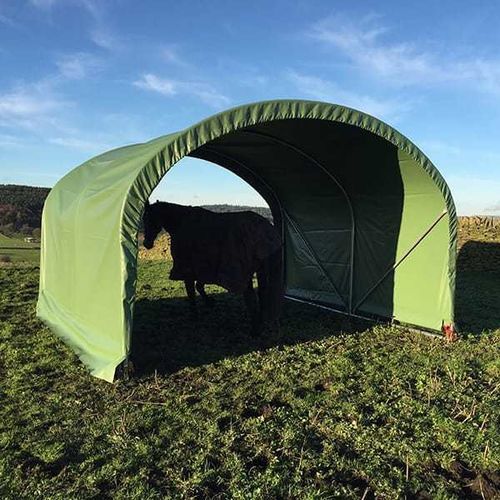

Mobile field shelter designed and manufactured in the UK. Constructed with a MAGNAtube steel framework and a heavy-duty 610gsm PVC cover suitable for use in adverse weather. Intended for livestock (sheep, horses, alpacas) and for general storage.

Short features

• MAGNAtube steel framework
• 50 mm diameter steel hoops
• 32 mm bracing bars
• 100% waterproof, flame-retardant PVC cover (610gsm)
• 5 year UV protection warranty on PVC cover
• Anchored using galvanised screw anchors into soil (no concrete foundations)
• Easy assembly: bolted steelwork and ratchet cover tensioning
• Optional net gable ends available
• Free delivery to mainland UK

Why choose this shelter?

• Designed for use in British weather conditions
• High corrosion resistance provided by MAGNAtube steel
• Quick to erect and relocate (screw anchor fixings can be removed and reused)
• Suitable for livestock sheltering and equipment storage

Availability & variants
Available in three lengths with a constant width and height across options. Length options: 4 m, 6 m and 8 m with corresponding weights and prices (see specifications). Instruction manuals are provided for each size.

Included / Optional items

• Main shelter with MAGNAtube steel hoops and PVC cover
• Galvanised screw anchors for soil fixing
• Optional gable end panels: blank, gable with door, or net gable end (sold separately)

Delivery & warranty
Free delivery to mainland UK. PVC cover includes a 5 year warranty against UV degradation. Extended lead times may apply in peak season.

Technical specifications

• Width: 4 m
• Height: 2.6 m
• Available lengths: 4 m, 6 m, 8 m
• Hoop diameter: 50 mm (MAGNAtube)
• Bracing bar diameter: 32 mm
• Cover material: Solid green heavy-duty 610gsm PVC (100% waterproof, B2 flame retardant)
• Cover warranty: 5 year UV protection guarantee
• Anchoring: Galvanised screw anchors into soil (no concrete foundations required)
• Cover tensioning: Ratchet straps for correct long-term tension
• Framework finish: MAGNAtube steel (high corrosion resistance)
• Typical uses: livestock shelter (sheep, horses, alpacas), equipment or general storage
• SKU (product family): FSR
• Variant details (weight / price excl. VAT as shown on page):

  • 4 m x 4 m — Weight: 119.88 kg — Price excl. VAT: £1013.65
  • 4 m x 6 m — Weight: 163.92 kg — Price excl. VAT: £1252.59
  • 4 m x 8 m — Weight: 211.12 kg — Price excl. VAT: £1577.71
