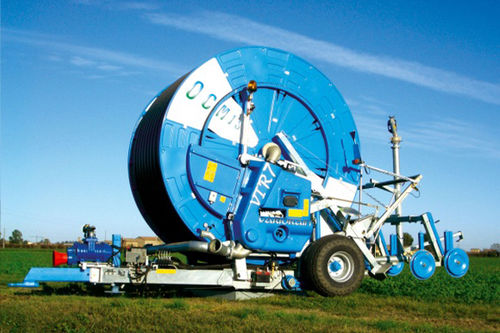

Irrigation hose reel VIR7/1

turbine-drive

Great stability, ideal for handling pipes of large dimensions. The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system. The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses. Standard equipment -Hydraulic lifting device of trolley -Hydraulic rotation of turntable -Hydraulic lifting of drawbar -Telescopic hydraulic feet -4 speed VR gearbox -Power take off -Turbine flanged on the gearbox with built-in by-pass -Flexible connection pipe -Galvanized raingun trolley mounted on variable track wheels -Raingun -Set of nozzles REFLEX raingun from Ø 24 to Ø 32 -Set of nozzles EXPLORER raingun from Ø 28 to Ø 40 -Pressure gauge (glycerine bath) -Winding handle -Speed equalizer -Tachometer -Hydraulic system by rapid couplings to tractor -Safety guards -2 wheels 400/60-155 16PR 6F -Safety guards made of steel, swaged galvanized and painted -Galvanized double water inlet -Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints -Polyethylene hose made from unadulterated raw material
