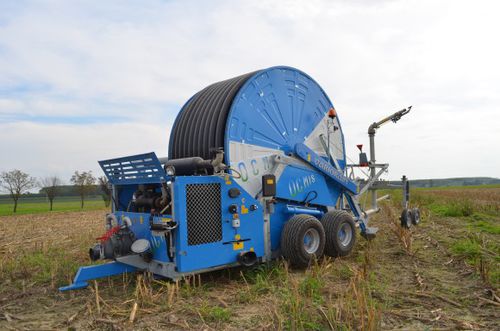

Irrigation hose reel VIR8AM

turbine-drive

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system. The competitive advantages are numerous: water saving, user-friendliness and no significant pressure losses. The irrigating machines of the E-volution use a fully electrical hose-rewinding system. The technical avant-garde of the rollers, offering greater precision, lower energy consumption, lower maintenance costs, and a wide range of operating speeds. Standard equipment -Hydraulic lifting device of trolley -Hydraulic rotation of turntable -Hydraulic lifting of drawbar -Telescopic hydraulic feet -4 speed VR gearbox -Power take off -Turbine flanged on the gearbox with built-in by-pass -Flexible connection pipe -Galvanized raingun trolley mounted on variable track wheels -Raingun -Set of nozzles REFLEX raingun from Ø 24 to Ø 32 -Set of nozzles EXPLORER raingun from Ø 28 to Ø 40 -Pressure gauge (glycerine bath) -Winding handle -Speed equalizer -Tachometer -Hydraulic system by rapid couplings to tractor -Safety guards -2 wheels 400/60-15.5 16PR 6F -Safety guards made of steel, swaged galvanized and painted -Galvanized double water inlet -For hose diam. 100-110-120-125 water inlet Bauer Ø 108 -For hose diam. 135-140-150 water inlet Bauer Ø 133 -Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
