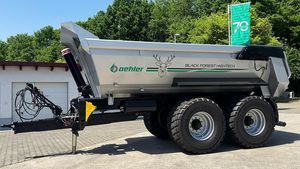

Tipping trailer OL TDK 180 NHR

3-axleagricultural18 ton

OL TDK 180 NHR – Tandem axle three-way tipper – High-speed Permissible total weight: 18 t Internal platform dimensions: 5,035 × 2,360(2,340) × 600 mm The Oehler OL TDK 180 NHR is a robust tandem 3-way tipper designed for extreme demands in agriculture, municipal use, and on construction sites. With a gross vehicle weight of 18 tons and an impressive payload, the 18-ton three-way tipper is perfect for transporting heavy bulk materials such as sand, soil, gravel, or crops. Whether Unimog, tractor, or truck – the TDK 180 NHR is compatible with all towing vehicles and offers maximum flexibility. Standard tires: 435/50R19.5 10L ET02 Unladen weight approx.: 4,500 kg Overall length: 6,980 mm; overall width: 2,550 mm; side wall: 600 mm Platform height approx.: 1,135 mm Base plate: 5 mm Hardox Track width approx.: 2,050 mm Max. axle load capacity: 27,000 kg Tilt cylinder stages: 5 Cylinder stroke: 1,875 mm Cylinder stage diameter (mm): 75-90-105-120-140 Max. lifting force: 27.7 t Max. operating pressure: 180 bar Required oil volume: 18.6 l Chassis: I-profile frame Side walls: Base side wall 600 mm HARDOX 2.5 mm thick Brake: Dual-circuit compressed air brake system Axles: BPW: suitable for 80 km/h, 360×120, 130 mm square Support: Support foot Electrics: 12 volt lighting system, rear socket Paintwork: ACC dip primer and powder coating Tilting device: 5-stage lift cylinder, 1,875 mm lift, hard chrome-plated piston rod, gimbal mounting, automatic lift limit Other: Wheel chocks Support load approx.: 1,000 kg - I-profile frame - Dual-circuit compressed air brake system - Base side wall 600 mm HARDOX 2.5 mm thick - BPW axle suitable for 80 km/h, 360×120, 120 mm square - 12-volt lighting system, rear socket - ACC dip primer and powder coating, standard green paint finish - 5-stage lift cylinder, 1,875 mm stroke, hard chrome-plated piston rod, cardanic bearing, automatic lift limit - Wheel chocks - Aluminum ladder - 8 lashing eyes on the base plate, 4 per side - Low design - Hydraulic gravel flap - Support cable winch - Lamp guard for lighting - Mudguards (required for approval from 40 km/h) - Toolbox - Side wall lifting springs on left and right - AGS (automatic rod adjuster) - ALB (automatic load-dependent brake force regulator) - Supports left + right - Underride guard TDK 180 NHR
