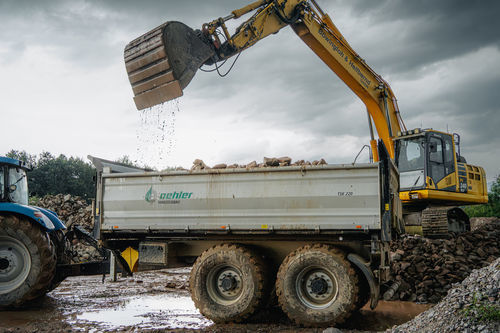

Tipping trailer OL TSK 220

2-axleagricultural22 tons

OL TSK 220 - Tandem axle three-way tipper - Heavy duty Permissible total weight: 22.0 t Platform dimensions (inside): 5,200 x 2,410 x 1,000 mm The OL TSK 220 tandem heavy-duty tipper from Oehler is the perfect solution for anyone who values maximum reliability, stability, and flexibility when transporting bulk goods. With a total weight of 22 t (including 4 t support load with K 80) and a loading area of 5,200 × 2,410 × 1,000 mm, this three-way tipper can handle even the toughest tasks in construction, agriculture, and industry. Permissible total weight: 22 t (4.0 t drawbar load with K 80) Tires: 560/60 R22.5 164D ALL885 10L ET 0 Unladen weight approx.: 6,800 kg Overall length: 7,450 mm; overall width: 2,550 mm; base side wall: 1,000 mm, HARDOX Platform height approx.: 1,620 mm Base plate: 6 mm Track width approx.: 1,950 mm Max. axle load capacity: 32,000 kg Tipper cylinder stages: 5 Cylinder stroke length: 2,500 mm Cylinder stage diameter (mm): 75-90-105-120-140 Max. lifting force: 27.7 t Max. operating pressure: 180 bar Required oil volume: 18.6 L Chassis: Double T-beam Brake: 2-circuit compressed air brake system Axles: ADR: suitable for 25/40/60 km/h, 420×180, 150 mm square composite unit 30 t, with 3-layer parabolic suspension Support: Saddle support winch Electrical system: 12-volt lighting system, rear socket Paintwork: 2K paintwork Tilting device: 5-stage lift cylinder, 2,500 mm lift, hard chrome-plated piston rod, gimbal mounting, automatic lift limit Other: Wheel chocks, aluminum ladder at front, fixed underride guard, yellow side reflectors (self-adhesive) Height: 3,000 mm Chassis: 150 mm square composite unit 30 t, with 3-layer parabolic suspension - 6 mm HARDOX floor plate - Rectangular tube chassis - 2-circuit compressed air brake system - Drawbar with mechanical suspension - Pendulum tailgate – hydraulically lockable and unlockable - Left side wall with central locking - Front wall with stone guard - ADR axles: suitable for 25/40/60 km/h, 420×180, 150 mm square composite unit 30 t, with 3-layer parabolic suspension - 12-volt lighting system, rear socket - 2K paint finish - 5-stage lifting cylinder, 2,500 mm lift tipping device – hard chrome-plated piston rod – gimbal mounting – automatic lift limitation - Saddle support winch - Reinforced ball head bearing, positioned far outside, including two tipping bearing safety bolts (cross-pin safety device, tamper-proof) - Wheel chocks - Aluminum ladder at the front - Fixed underride guard - Yellow side reflectors (self-adhesive) on the road side
