- Forestry
- Logging
- 3-cylinder tractor
- Oehler Maschinen Fahrzeugbau GmbH
3-cylinder tractor OL 2690 Kelectric
Add to favorites
Compare this product
Characteristics
- Number of cylinders
- 3-cylinder
- Other characteristic
- electric
- Engine power
19 kW
(26 hp)- Displacement
1,115 cm³
(38 US fl oz)- PTO speed
3,000 rpm
(18,849.6 rad.min-1)- Fuel tank capacity
34 l
(9 gal)- Total length
3,560 mm
(140.2 in)- Total height
2,230 mm
(87.8 in)- Weight
1,690 kg
(3,725.8 lb)
Description

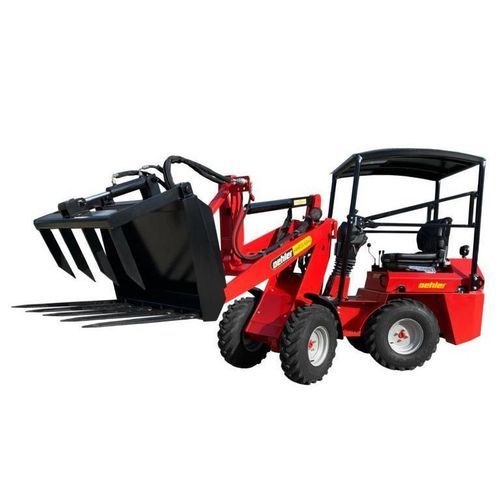

OL 2690 K - Farm tractor
Axles: Self-locking EM Quattro all-wheel drive axles
Cylinder/displacement: 1115 cc
Power: 19.1 kW / 25.8 hp
Pump: Axial piston variable displacement pump
Steering: Danfoss
Working speed: 3000 rpm
Engine power: 3-cylinder Yanmar (diesel)
Working hydraulic flow: 33 liters/min
Working hydraulic pressure: 210 bar
Travel hydraulic flow: 63 liters/min
Travel hydraulic pressure: 210 bar
Battery: 74 Ah
Diesel tank: 34 liters
Hydraulic tank: 34 liters
Length with equipment: 3560 mm
Machine width: 970/1050/1310 mm
Inner turning circle: 850 mm
Tipping load straight: 920 kg
Weight with bucket: 1690 kg
Pivot point: 2940 mm
Bucket tipped: 2145 mm
Seat height: 1260 mm
Work lights: 1 x arm, 1 x rear standard, LED front and rear
Height above roll bar: 2230 mm
- Standard meter
- Single-lever control with double float position
- Comfort seat with seat belt
- Hydraulic oil cooler, cooling capacity up to 100 l
- Electric fuel gauge, coolant temperature
- Adjustable steering column
