- Forestry
- Logging
- 4-cylinder tractor
- Oehler Maschinen Fahrzeugbau GmbH
4-cylinder tractor OL 5080 Kelectric
Add to favorites
Compare this product
Characteristics
- Number of cylinders
- 4-cylinder
- Other characteristic
- electric
- Engine power
50 ch
(50 hp)- Displacement
2,190 cm³
(74 US fl oz)- PTO speed
2,999 rpm
(18,843.3 rad.min-1)- Fuel tank capacity
55 l
(14.5 gal)- Total length
462 cm
(181.9 in)- Weight
2,880 kg
(6,349.3 lb)
Description

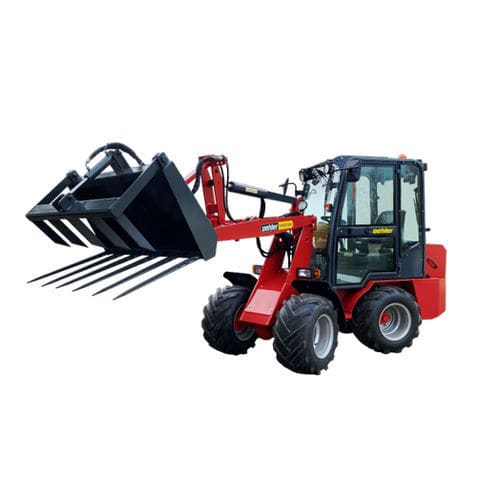

OL 5080 K - Farm tractor
Standard tires: 15.0/55-17 AS
Max. lifting capacity: 3.4 t
Axles: EM Quattro self-locking all-wheel drive axles
Cylinder/displacement: 2190 cc
Power: 36.7 kW / 50 hp
Pump: Axial piston variable displacement pump
Steering: Danfoss
Working speed: 2999 rpm
Engine power: 4-cylinder Yanmar DPF particulate filter
Working hydraulic flow: 67 liters/min
Working hydraulic pressure: 210 bar
Travel hydraulic flow: 170 liters/min
Travel hydraulic pressure: 350 bar
Battery: 74 Ah
Diesel tank: 55 liters
Hydraulic tank: 55 liters
Length with equipment: 4620 mm
Machine width: 1600 mm
Inner turning circle: 1140 mm
Tipping load straight: 1550 kg
Weight with bucket: 2880 kg
Pivot point: 3450 mm
Bucket tipped: 2810 mm
Seat height: 1300 mm
Work lights: 1 x arm 1 x rear Standard
- Meter as standard
- Single-lever control with double float position
- Comfort seat with safety belt
- Hydraulic oil cooler, cooling capacity up to 100 l
- Electric fuel gauge, coolant temperature
- Adjustable steering column
