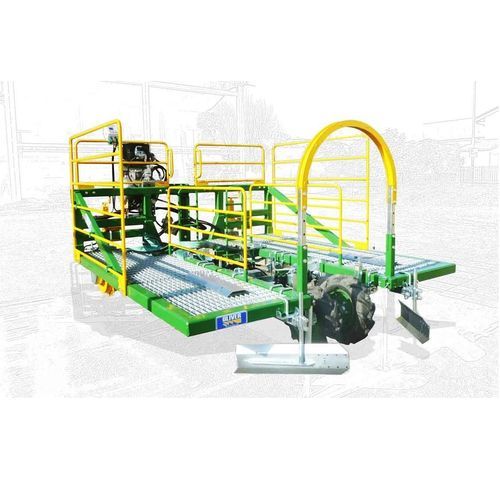

High Plant Super Drive Transplanter.
Trasplanting machine SD for high plants, is a machine created for planting plants from 1 to 4 cm of section and from 20 cm to 2.0 meters tall.
Trailed by the tractor, it performs a constant and precise arrangement of the plants, regardless of the speed of the tractor, thanks to an autonomous system of movements, synchronized.
Suitable for plants from nurseries, fruit trees, sleeping eyes, lavender, Jatropha, flowers, cuttings with or without roots and with peat cubes.
Technical features
Structure and functioning
Painted tubular structure (1), with third point (2), supports all the components of the machine.
Large worktop (3) and protective bulkheads (4).
Here we place the pallets with the plants to be transplanted
The machine in addition to being anchored to
Tractor, stabilizes thanks to two front wheels (5) adjustable in height.
The first operative element of the machine is the falcione (6), which creates the excavation for the plant’s plant.
The depth of the excavation (7) is 250 mm and 150 mm of register.
The Falcione is adjustable in width and height (8).
The machine is equipped with an autonomous hydraulic system (9):
– oil tank (10)
– oil cooling system (11)
– pump unit (12) that take the bike thanks to the multiplier (13) connected to the tractor PTO.
