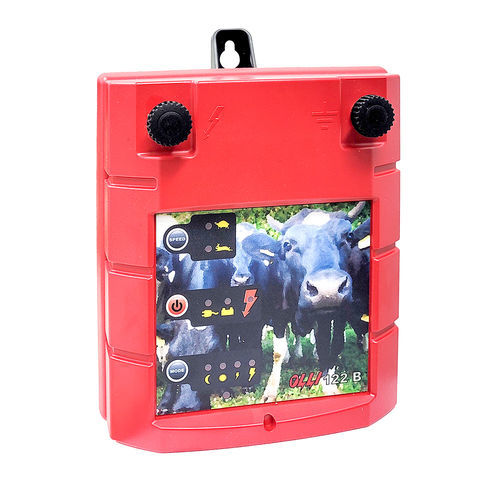

Battery-powered fence energizer 122B

rechargeablesmart

Product description The Olli 122B is a movable energiser for medium-length electric fences, designed for 12V battery operation with mains connection capability (adapter included). It supports simultaneous connection of a mains adapter, a 12V rechargeable battery and four 1.5V D (LR20) alkaline backup batteries. The unit’s smart energy management automatically selects the best power source and ensures continuous operation: when the rechargeable battery charges the alkaline set maintains output; when rechargeable battery is depleted the unit switches to alkaline; if alkaline are depleted operation continues from the 12V battery at reduced power and lower pulse frequency.

Product information Maximum voltage: 8,500V
Voltage at 500 Ω load: 3,880V
Stored energy: 1.63 J
Maximum output energy: 1.21 J
Power consumption: 46–109 mA
Recommended earthing rods: 1–2 pcs.
Maximum theoretical fence length (single-wire, thick conductor): 62 km
Maximum theoretical fence length (light vegetation): 12 km
Maximum theoretical fence length (moderate vegetation): 3 km
Built-in lightning protection: Yes
Warranty (including lightning damage): 3 years
Olli product code: 6000122
EAN: 6417160100176
Solar panel accessory available: Yes

Characteristics / technical specifications

• Type: Movable battery energiser with mains adapter capability
• Supported nominal power sources: 12V rechargeable battery, 4 × 1.5V D (LR20) alkaline batteries, mains adapter (included)
• Automatic energy source selection: Yes
• Battery backup: Alkaline batteries maintain output while rechargeable battery charges
• Output energy (max): 1.21 J; Stored energy: 1.63 J
• Voltage (no-load peak): 8,500 V; Voltage at 500 Ω load: 3,880 V
• Power settings: 2 power levels; Pulse speeds: 2; Light-level dependent power adjustment available
• Power consumption (range): 46–109 mA
• Indicators and protections: Comprehensive LED display, low voltage warning, low fence voltage warning, deep discharge protection
• Recommended earthing: 1–2 rods (earthing essential for fence efficiency)
• Max theoretical fence lengths: up to 62 km (single-wire ideal), 12 km (light vegetation), 3 km (moderate vegetation)
• Built-in lightning protection: Yes
• Warranty: 3 years (includes lightning damage)
• Accessories: Earthing spike kit, 20 W solar panel kit
• Recommended battery type: Leisure (deep-cycle) battery preferred over vehicle starter batteries
