Solar-powered fence energizer 9.07S

battery-poweredrechargeable

Product overview

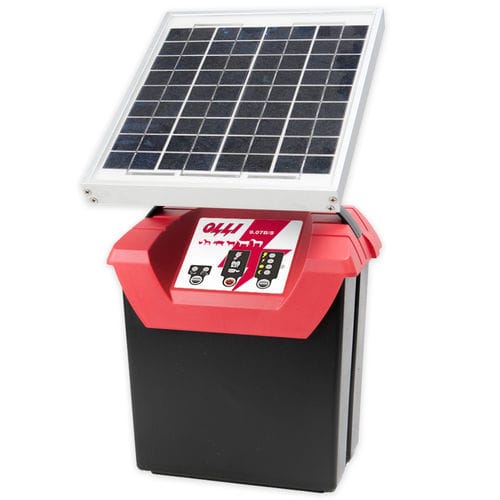

Olli 9.07S is a portable solar fence energiser kit including the energiser, a 12 V/12 Ah gel battery, a 6 W solar panel and a mains adapter that charges the battery or allows operation without a battery. The movable energiser is intended for electrification of rotational pasture parcels and temporary fence lines.

Power saving features

• Selectable modes:
  • full power
  • half power
  • full power during the day, half power after dark
  • half power during the day, full power after dark
  • impulse interval selection (fast / slow)
• Automatic power reduction and slower impulse interval when battery voltage is low

Battery and protection
Overcharge and deep-discharge protection for the 12 V battery. Low fence voltage warning to indicate earthing or line issues.

Tip
Poor earthing is the most common cause of reduced fence performance. Correct and adequate earthing installation from the start prevents many performance problems.

Warranty and service
All Olli energisers include a 3-year warranty that covers lightning damage. Olli units manufactured in Finland are serviced by the factory service centre and authorised Olli Service Partners. Spare parts availability is guaranteed for many years, including discontinued models.

Product information
Maximum voltage: 9,800 V
Voltage at 500 Ohm load: 3,200 V
Stored energy: 0.86 J
Maximum output energy: 0.71 J
Power consumption (12 V rechargeable battery / 9 V battery): 30-62 / 40-85 mA
Recommended number of earthing rods: 1-2
Maximum theoretical fence length: 35 km
Maximum theoretical fence length (light vegetation): 7 km
Maximum theoretical fence length (moderate vegetation): 2 km
Built-in lightning protection: Yes
Warranty, incl. lightning damage: 3 years
Olli product code: 6000907S
EAN code: 6417160100541

caractéristiques / spécifications techniques

• Included: energiser, 12 V/12 Ah gel battery, 6 W solar panel, mains adapter
• Maximum voltage: 9,800 V
• Voltage at 500 Ω load: 3,200 V
• Stored energy: 0.86 J
• Maximum output energy: 0.71 J
• Power consumption: 30-62 mA (12 V battery) / 40-85 mA (9 V battery)
• Recommended earthing rods: 1–2
• Maximum theoretical fence lengths: up to 35 km (single-wire thick metal), 7 km (light vegetation), 2 km (moderate vegetation)
• Built-in lightning protection
• Warranty: 3 years (includes lightning damage)
• Olli product code: 6000907S
• EAN: 6417160100541
