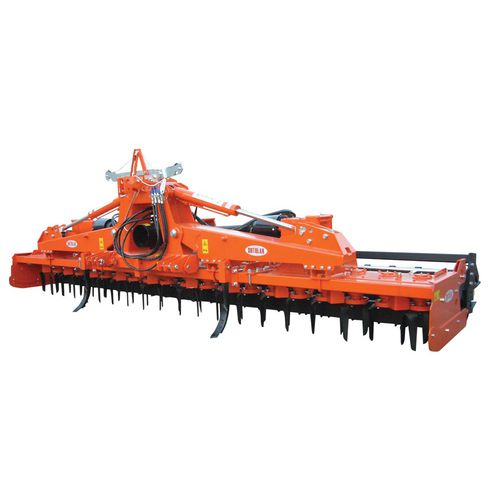

Power harrow GEMINI 2 series
with rollerfolding

power harrow
power harrow
power harrow
Add to favorites
Compare this product


Characteristics

Type
power
Other characteristic
with roller, folding
Working width

408 cm, 455 cm, 502 cm
(160.6 in, 179.1 in, 197.6 in)

Description

Especially recommended to prepare and improve soils for sowing in professional Agriculture. Drive shaft with shear bolts, movable sides, round rotors anti-choking protected by stones - 2 blades (energy low absorption) per flange, double floating roller, mechanical or hydraulic (option) rapid adjustment of the roller in depth (cage, spiral, spiked, packer), adjustable rear clods smasher, subsoiler, rear light bar and reduced dimensions for street transportation. Available in 2 models following the different working widths as 400 and 500 cm. Transmission at 1000 rpm, fixed and floating frame position, floating 3 point hitches cat. 2nd and 3rd. •Anti-flood rounds rotors •Knives with low assimilated power •Quick hydraulic side shift for roller •Floating roller •Side dimensions reduced to working width •Fixed adjustable frame or floating (in fixed position close central rotors) •CE standard equipment •Four speed’s transmission 1000 rpm (rotors speeds 233-285-348-427 rpm) •Rear clods smasher •Drive shaft with shear bolt •Floating hitch cat. 2 and 3 pins •Subsoiler •2 spare blades
