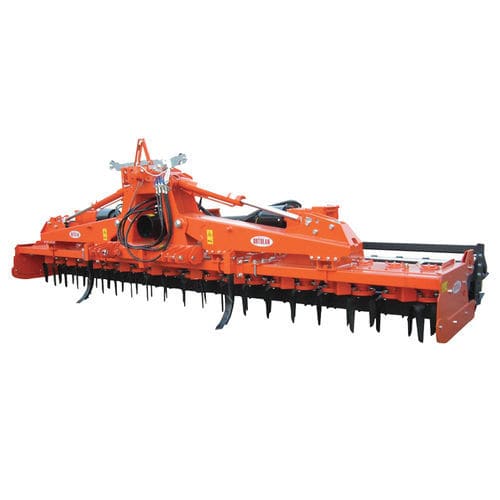

Power harrow GEMINI 3 series
with rollerfolding

power harrow
power harrow
power harrow
Add to favorites
Compare this product


Characteristics

Type
power
Other characteristic
with roller, folding
Working width

502 cm, 598 cm, 694 cm
(197.6 in, 235.4 in, 273.2 in)

Description

specially recommended to prepare and improve soils for sowing in professional Agriculture. Drive shaft with shear bolts, movable sides, round rotors anti-choking protected by stones - 2 blades (energy low absorption) per flange, double floating roller, mechanical or hydraulic (option) rapid adjustment of the roller in depth (cage, spiral, spiked, packer), adjustable rear clods smasher, subsoiler, rear light bar and reduced dimensions for street transportation. Available in 600 cm. working width. Transmission at 1000 rpm, fixed and floating position frame, floating 3 point hitches cat. 2nd and 3rd. •Anti-flood rounds rotors •Knives with low assimilated power •Quick hydraulic side shift for roller •Floating roller •Side dimensions reduced to working width •Fixed adjustable frame or floating (in fixed position close central rotors) •CE standard equipment •1000 rpm transmission (Rotors speeds 283-341 rpm) •Rear clods smasher •Drive shaft with shear bolt •Floating hitch cat. 2 and 3 pins •Subsoiler •2 bar lights •Floating roller
