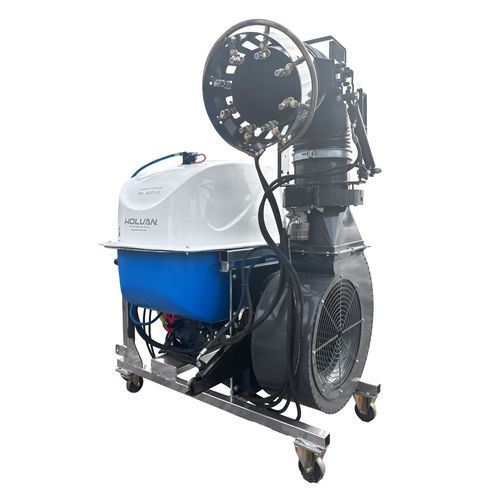

Tractor-mounted sprayer Holvan RH 600 LT
turbineair-assisted

Tractor-mounted sprayer - Holvan RH 600 LT - OSA MAKINA SAN VE TIC LTD STI (AYDINMAKSAN) - turbine / air-assisted
Tractor-mounted sprayer - Holvan RH 600 LT - OSA MAKINA SAN VE TIC LTD STI (AYDINMAKSAN) - turbine / air-assisted
Tractor-mounted sprayer - Holvan RH 600 LT - OSA MAKINA SAN VE TIC LTD STI (AYDINMAKSAN) - turbine / air-assisted - image - 2
Tractor-mounted sprayer - Holvan RH 600 LT - OSA MAKINA SAN VE TIC LTD STI (AYDINMAKSAN) - turbine / air-assisted - image - 3
Tractor-mounted sprayer - Holvan RH 600 LT - OSA MAKINA SAN VE TIC LTD STI (AYDINMAKSAN) - turbine / air-assisted - image - 4
Tractor-mounted sprayer - Holvan RH 600 LT - OSA MAKINA SAN VE TIC LTD STI (AYDINMAKSAN) - turbine / air-assisted - image - 5
Add to favorites
Compare this product
Go to the OSA MAKINA SAN VE TIC LTD STI (AYDINMAKSAN) website for more information

Characteristics

Mobility
tractor-mounted
Type
turbine
Other characteristics
air-assisted
Capacity

Max.: 600 l
(158.5 gal)

Min.: 600 l
(158.5 gal)

Working width

Max.: 30 m
(98'05" )

Min.: 30 m
(98'05" )

Pump capacity

Max.: 120 l/min
(31.7 us gal/min)

Min.: 120 l/min
(31.7 us gal/min)

Pump pressure

Max.: 50 bar
(725.2 psi)

Min.: 50 bar
(725.2 psi)

Description

Product overview
  • Holvan RH 600 LT is a tractor-mounted sprayer with a 600 L tank, designed for medium to large fields and compatible with tractors in the 55–90 HP range and a 540 rpm PTO.
  • Rotor-type fan provides wide coverage up to 30 m working width and enables air-assisted application for better canopy penetration.
  • Pump delivers 120 L/min with a maximum pressure of 50 bar to ensure consistent spray distribution.
  • Equipped with 11 nozzles and a 600 L tank; overall weight 525 kg for stability during field operations.


Key features
  • Model: Holvan RH 600 LT
  • Tank capacity: 600 L
  • Working width: 30 m
  • Nozzle count: 11
  • Pressure: 50 bar
  • Pump flow: 120 L/min
  • PTO speed: 540 rpm
  • Recommended tractor power: 55–90 HP
  • Weight: 525 kg
  • Warranty: 2-year official warranty
  • Rotor fan system for wide coverage


Technical specifications
  • Model: Holvan RH 600 LT
  • Tank: 600 L
  • Working width: 30 m
  • Nozzles: 11
  • Max pressure: 50 bar
  • Pump flow: 120 L/min
  • PTO: 540 rpm
  • Weight: 525 kg
  • Warranty: 2 years
