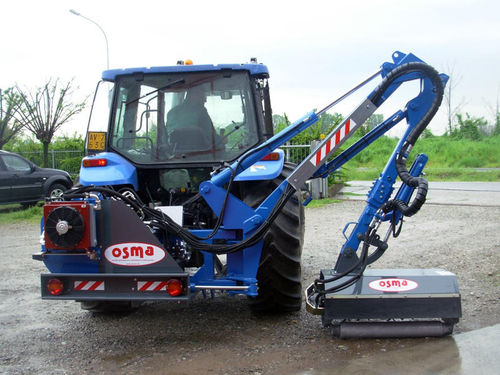

Mounted reach mower DHPS Series
flailfoldingPTO-driven

mounted reach mower
mounted reach mower
mounted reach mower
mounted reach mower
mounted reach mower
Add to favorites
Compare this product


Characteristics

Mounting
mounted
Technology
flail
Other characteristic
folding, PTO-driven
Working width

620 cm, 720 cm, 820 cm
(244.1 in, 283.5 in, 322.8 in)

Description

Semi-professional shrub arm, for farmer works and road-side banks, for grass, bushes and branches, with 120cm. flail mower, mod. TP 120 (professional) and rotor with knife A, to cut up to 6/7cm, with telescopic device on the second arm. Tractor power required: from 90 to 130 HP. STANDARD EQUIPMENT: Three point linkage, cat. II., PTO 540 rpm, Drive shaft gr.4, Locking tie rods, 140mm adjustable rear roller. Flail mower mod. TP 120, with rotor type A. Pivoting arm frame with hydraulic cylinder , Hydraulic breakaway with hydr.valve. Reversible rotor rotation, with knives type A (articulated Y knives). Rotor power 58 hp. Cables control with 5 levers, oil cooler, rear tails light, Cast iron double-gear pump and motor, gear box with 65hp. Floating system on the first arm and on the mower. Telescopic extension 90cm (DHPS 600), 110cm (DHPS700), 130cm(DHPSS800)
