Fruit harvester machine OPTIMUM XXL80

oliveself-propelledwith sieving systems

Overview
The OPTIMUM XXL80 harvesting machine from PELLENC is a high-performance harvester designed for arboriculture and viticulture. Available in several configurations, it combines productivity, harvest quality and operator comfort to enable fast, efficient harvesting across a wide range of orchards and vineyards.

Available versions / Harvesting heads

• ARBO' PROCESS (for olive and fruit growing)
• Easy Smart (for wine growing)
• Selectiv’ Process (for wine growing)

Key features — Comfort

• Spacious, air-conditioned and fully-equipped cab (Bluetooth car radio, USB sockets, ample storage including refrigerated compartment)
• GRAMMER* air-suspension seat: ventilated, heated and fitted with anti-vibration system (depending on model)
• Panoramic visibility for optimal view of row entrance
• Numerous customisable settings (seat, armrests, steering column, etc.)

Key features — Control and driving aids

• EASY TOUCH touchscreen for intuitive control with pictograms for each function
• EASY DRIVE joystick on fixed pivot with backlit buttons for impulse or continuous steering
• Driving aids: automatic parking brake, inclinometer, speed limiter, headland brake*, HD screen with manoeuvring cameras, row entry camera and visualisation of slope/tilt
• Assistance features for harvest height: ground-following ensured by 4 sensors, automatic top/bottom stops, adjustable shaker clamping from the cab, fill level display and one-click bin lowering

Key features — Manoeuvrability

• EASY TURN 95° steering system for exceptional manoeuvrability
• Turning radius: 3.98 m
• U-turn at end of row without reversing; automatic retraction of inside rear wheel to improve turning

Key features — Powertrain and performance

• Powerful PERKINS STAGE 5 engine: 200 hp
• Full-time four-wheel drive with TPI2 anti-skid system
• EASY POWER system: automatically adapts engine speed to implements and carrier needs
• Gradeability up to 30%
• Numerous 100% LED lights for efficient night work

Key features — Harvesting performance

• Longest sealing length on the market: 3.60 m for high harvesting speed without losses
• Total bins capacity up to 4,200 litre with real-time bin level indicator displayed continuously in the cab

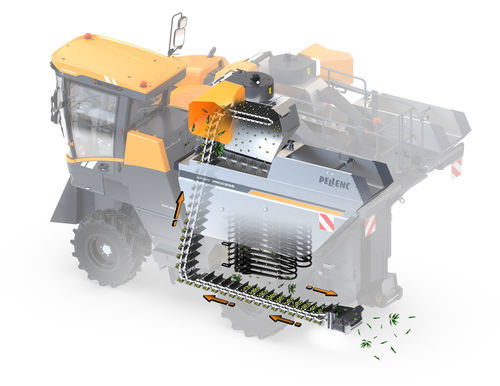

• High-capacity conveyor system with reversible operation and conveyor speed independent of forward speed
• Capacity to harvest trees up to 3.8 m high and 2 m wide; trunk diameter up to 40 cm

Key features — Head and sorting systems (ARBO' PROCESS and "light" head descriptions)

• Head mounted on 4 silent blocks for vibration isolation and improved comfort
• 75% reduction in cab vibrations thanks to isolation system
• Two extractor rollers to remove branches and foreign objects; harvest sorting systems separate and remove leaves
• Reinforced shaking system with crank-and-connecting rod mechanism capable of withstanding considerable forces while protecting vegetation
• Supports up to 42 shakers; mechanical and hydraulic pinch adjustments to improve harvesting without damaging vegetation
• Flexible bucket-shaped scales protect tree trunks and provide excellent sealing performance even at high yields
• Integrated fixing sockets for quick assembly; injection-moulded shaker material for increased wear resistance and reinforced areas in high-wear zones

Key features — Safety

• ROPS cab (Roll Over Protection Structure), code 8 compliant, pressurised and filtered
• Seat with seat belt and presence sensor that triggers tools emergency stop if operator leaves seat
• Five emergency stops distributed throughout the machine*
• Automatic parking brake and up to 3 manoeuvring cameras* (depending on model)

Maintenance and serviceability

• Quick and easy access to maintenance and lubrication points
• Engine and hydraulic maintenance operations displayed on EASY TOUCH touchscreen with hour counter and permanent self-diagnosis
• Designed for fast cleaning (engineered to allow record-fast cleaning in ~20 minutes) and simple maintenance without tools for many service points

Notes

• Some features and equipment depend on the chosen model or options.
• ARBO' PROCESS harvesting head can operate from as low as 1400 rpm (when used with EASY POWER).

Caractéristiques / spécifications techniques

• Model name: OPTIMUM XXL80
• Manufacturer: PELLENC
• Engine: PERKINS STAGE 5 — 200 hp
• Drivetrain: Full-time four-wheel drive (TPI2 anti-skid system)
• EASY POWER: automatic engine speed adaptation to tool needs
• Gradeability: up to 30%
• Turning radius (EASY TURN 95°): 3.98 m
• Sealing (longest sealing length): 3.60 m
• Total bin capacity: up to 4,200 litre
• Harvest capacity: trees up to 3.8 m high and 2 m wide; trunk diameter up to 40 cm
• Shakers: supports up to 42 shakers; new injection-moulded shaker material with reinforced wear zones
• Vibration isolation: head mounted on 4 silent blocks — up to 75% reduction in cab vibrations
• ARBO' PROCESS harvesting head: reversible conveyor, high-capacity conveyor, simultaneous sorting of branches and leaves
• Operational rpm for ARBO' PROCESS: from approximately 1,400 rpm
• Lighting: numerous 100% LED lights for night operation
• Cab: ROPS, pressurised and filtered; air-conditioning; ergonomic GRAMMER* air-suspension seat (depending on model)
