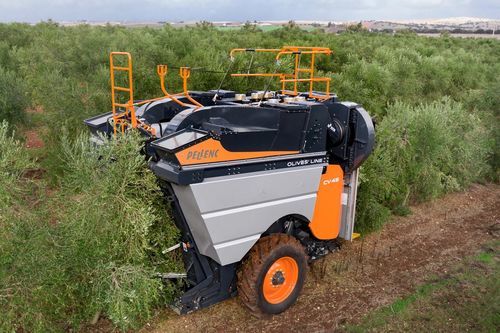

Fruit harvester machine OLIVES'LINE

olivetowed

Overview
The OLIVES'LINE towed harvesting machine is designed for high-density and super-intensive olive groves. Hitched to a conventional tractor, it combines PELLENC innovations to deliver faster, higher-quality harvesting operations. Manoeuvrable and easy to operate, OLIVES'LINE harvests olives quickly and gently while protecting trees and fruit to extend orchard life.

Key benefits

• High productivity: a single operator can harvest up to 10 ha/day.
• High throughput: yield up to 16 t/h.
• Compact external dimensions with excellent usable volume ratio.
• Harvesting speed: 1.5–4 km/h.
• Large capacity: total capacity of the two bins up to 3500 kg.
• Low maintenance costs thanks to a pneumatic conveyor.

Protects the tree and the fruit

• Designed to minimise damage to orchards and fruit.
• 2.6 m entrance cone (accommodates tree width up to 2.5 m and height up to 4.5 m).
• Low-frequency shaking that is gentle on trunk and fruit.

Ergonomics and handling

• EASY DRIVE joystick control in the cab for all functions.
• Automatic ground and row tracking for consistent harvesting.
• Operates on slopes up to 10%.
• Headland turning from 8 m.

Design highlights

• Shaker arms specifically developed for olives and other delicate fruit.
• New-generation arm options adapted to the harvested product.

Technical features (table)
Header: F100 | FB 15 HD
Length (m): 3.40 | 2.23
Width (m): 1.30 | 1.72
Height (m): 2.35 | 1.50
Max. working height (m): 2.50 | 2.50
Arm output amplitude (m): 2.75 | 0.50
Tractor required: Standard 90/100 HP | Standard 90/120 HP
PTO power consumption: 65 HP at 540 rpm | 85 HP at 540 rpm
Trunk diameter: 50 to 300 mm | 80 to 500 mm
Mobile 3-jaw clamp: 3 jaws | CB15 (2 jaws)
Set of cushions and flaps: standard | standard
Clamp angle: +/– 40° | +/– 30°
Vibration frequency: Adjustable from 0 to 31 Hz | Adjustable from 0 to 31 Hz
Total weight (kg): 950 | 1250
Use: Multi-trunk and single trunk | Single trunk
Pre-cut plate for tractor mounting: yes (F100) | no (FB 15 HD)
Plate for mounting on front loader: no (F100) | yes (FB 15 HD)
Hydraulic function controls: standard | standard
3-point rear hydraulic unit: standard | standard

Technical specifications

• Model: OLIVES'LINE
• Type: Towed harvesting machine for high-density and super-intensive olive groves
• Mounting: Hitched to a conventional tractor
• Harvesting speed: 1.5–4 km/h
• Capacity (two bins): up to 3500 kg
• Productivity: up to 10 ha/day (single operator); throughput up to 16 t/h
• Entrance cone: 2.6 m (tree width up to 2.5 m; height up to 4.5 m)
• Vibration frequency: adjustable 0–31 Hz
• Controls: EASY DRIVE joystick; automatic ground and row tracking
• Slope capability: up to 10%
• Headland turning: from 8 m
• Maintenance: low (pneumatic conveyor)
• Shaker arms: specially designed for delicate fruit (olives)
