Irrigation pump
self-primingcentrifugalelectric

irrigation pump
irrigation pump
Add to favorites
Compare this product


Characteristics

Application
irrigation
Priming
self-priming
Other characteristics
centrifugal, electric, hydraulically-operated
Power

5 ch, 6.5 ch, 7 ch (5 hp)

Flow

Min.: 606 l/min (160.08826 us gal/min)

Max.: 1,730 l/min (457.01765 us gal/min)

Pressure

4 bar (58.02 psi)

Description

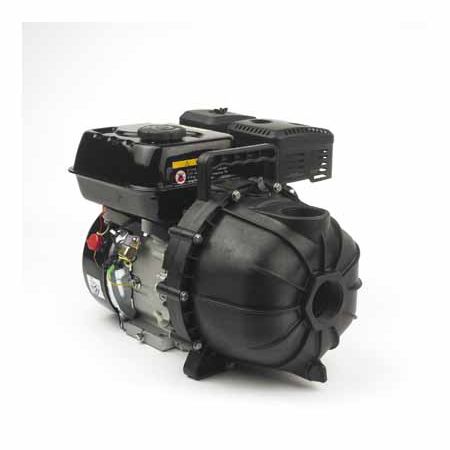

FEATURES & BENEFITS Hypro’s range of Transfer Pumps are ideal for high capacity liquid transfer, offering flow rates up to 1730 litres per minute. Available with 2” (50 mm) or 3” (76 mm) inlet and outlet, driven by hydraulic motor, electric motor or close-coupled to a petrol engine. -Polypropylene pump housings suitable for corrosive environments -EPDM mechanical seal and inlet valve for longevity and reliability -Handle solid suspension particles up to 0.95 cm in diameter -Maximum pressure 4 bar -Self-priming (after initial filling) with maximum suction height > 5 metres 3” Hydraulic Motor: 9343P-GM10Y-SP / 9343P-GM6Y-SP -3” (76 mm) intake & discharge -2 motor options: GM6 flow up to 1550 l/min, GM10 flow up to 1730 l/min -Offered with case drain (can be deleted as an option) -Poly impeller with stainless steel inserts for durability -Pump head replacement kit (3430-0692), EPDM seal kit (3430-0757) 2” Hydraulic Motor: 9342P-HM 5C-5SP / 9342P-HM 1C-5SP -2” (50 mm) intake & discharge -2 motor options: HM1C flow up to 730 l/minl, HM5C flow up to 750 l/min -5 vane nylon impellers for strength -Pump head replacement kit (3430-0648), EPDM seal kit (3430-0635) 2” coupled to petrol engine: 1442P-65SP -Close coupled to 6.5HP petrol engine -2” intake & discharge, Up to 757 litres/min -Engine features; built-in low-oil sensor to prevent seizing, manual throttle, choke, fuel valve and engine shut-off controls 2” coupled to ELECTRIC MOTOR : 9742P-050SPT(3) / 9742P-075SPT3 -5 HP single/3-phase or 7 HP 3-phase options -Fan cooled motor enclosed for protection against weather, dust and moisture -2” intake & discharge, Up to 606 litres/min at 50 Hz
