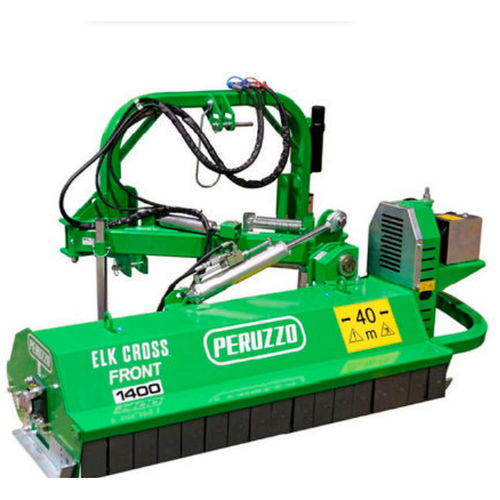

Mounted mower ELK CROSS FRONT

frontflailgrass

OFFSET SIDE FLAIL MOWER FOR TRACTORS FROM 50 HP TO 70 HP The ELK CROSS FRONT OFFSET SIDE FLAIL MOWER is mounted frontally on medium power tractors, both reversible and equipped with the front PDF. Used for grinding grass and prunings with a diameter of 3-4 cm, the ELK CROSS FRONT OFFSET SIDE FLAIL MOWER is used for maintenance work in public areas, highways, cutting, hedges, ditches, embankments. - Tractor power (expressed in hp): 50 – 70 hp - Cutting width: 1355 – 1475 mm - With collection: NO - Application: Front - Cutting unit: heavy hammer flail - Weight: 400-500 kg The ELK CROSS FRONT OFFSET SIDE FLAIL MOWER in this front configuration facilitates the operator in the control of the machine during the cutting or moving operation around obstacles, such as poles, shafts, guardrails and reaches a percentage change of bending that fluctuates between -50 and +90, for this reason the machine can also work vertically with constancy on long hedges, without any hesitation. It’s available in 1400 – 1600 versions. Features and Benefits: - Standard cardan included in the price - Multiple cutting possibilities depending on the working environment - Side slides as standard to avoid damage to the body - Rear roller compactor - Works tall grass and shrubs up to 4cm in diameter - Gearbox with run-in and low-noise helical gears - It is fitted as standard with steel paddles and a protective rubber that act as stone guards - Tensioner easy adjustment with self-tensioning spring - Available in 1400 – 1600 version - Articulated arm with hydraulic movement all controlled by tractor controls - Percentage change of bend from -50 μp to +90 μp - Hose with manual always included - 2 extra cutting blades, always included Technical Specifications: Cutting Width | Min - Max Power Required | Hammers 0.6 kg ---|---|--- ELK CROSS FRONT 1400 | 1165 mm | 50-60 HP / 36-44 KW | 18 ELK CROSS FRONT 1600 | 1355 mm | 60-70 HP / 44-51 KW | 20 Displacement measures during work Model | A | B | C | D | E ---|---|---|---|---|--- ELK CROSS FRONT 1400 | 700 mm | 1160 mm | 1860 mm | 1430 mm | 2350 mm ELK CROSS FRONT 1600 | 700 mm | 1360 mm | 2060 mm | 1430 mm | 2550 mm Cutting Height | Weight | RPM | Dimensions | Packaging ---|---|---|---|--- ELK CROSS FRONT 1400 | 20 - 75 mm | 400 kg | 540 | 181x160x84 cm | 180x110x90 cm ELK CROSS FRONT 1600 | 20 - 75 mm | 430 kg | 540 | 214x160x84 cm | 220x110x90 cm Application Areas: - Airports / Racetracks - Sloping / Slippery Terrain - Agriculture/ Zootechnics - Photovoltaic - Extensive Green Areas - Riding School - Uncultivated / Undergrowth - Road Maintenance - Private Green Areas - Public Parks - Accommodation - Vineyards / Orchards FAQ / FREQUENTLY ASKED QUESTIONS: - Which lawn mower to choose? The choice of a Peruzzo grass mulcher depends on the specific needs of the user and the characteristics of the land to be treated. Considerations include terrain size, type of terrain, type of vegetation to be cut, and additional features required. - Difference between the process of SCARIFYING and SFELTRATION? Scarification reduces the density of aerial vegetation by removing debris and dead leaves, promoting oxygenation. Sfeltration (defelting) removes felt that obstructs air and water circulation, using aggressive tools to cut into the soil. - Why buy only original Peruzzo products? Genuine Peruzzo products ensure the highest quality, reliability, safety, and access to reliable customer service. They are built with high-quality materials and strict standards, ensuring optimal and long-lasting performance. - How many types of Threshers are there? There are various types of mulchers, including flail mowers, mulchers for pruning residues, mallet or hammer shredders, universal shredders, forestry shredders, side-shredders, shredders for rocky grounds, biomass shredders, PTO mulchers, and autonomous mulchers. Characteristics / Technical Specifications: - Tractor power: 50 – 70 hp - Cutting width: 1355 – 1475 mm - With collection: NO - Application: Front - Cutting unit: heavy hammer flail - Weight: 400-500 kg - Available in 1400 – 1600 version - Standard cardan included - Side slides as standard - Rear roller compactor - Works tall grass and shrubs up to 4cm in diameter - Gearbox with run-in and low-noise helical gears - Steel paddles and protective rubber as stone guards - Easy tensioner adjustment with self-tensioning spring - Articulated arm with hydraulic movement - Percentage change of bend from -50 μp to +90 μp - 2 extra cutting blades included
