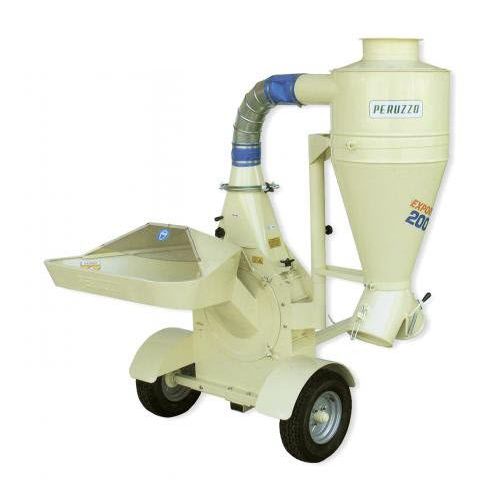

Hammer mill 200 EXPORT

grainstationarymobile

The 200 EXPORT hammer mill produces flour from various cereals, corn on the cob, stalks or hay ideal for high production Features In the 200 EXPORT hammer mill, the grain hopper is very large and the opening towards the grinding chamber is very large, facilitating the feeding of seeds as for cobs, without the aid of automation and maintaining a high hourly production. Features and Benefits Equipped with 18 movable hammers of 8mm thickness each in hardened steel and up to 4 times reversible Equipped with front disc with 3 blades for shredding corn on the cob Frame on fixed base and cyclone (for the PTO version and with electric motor) Chassis on agricultural wheel axle and cyclone (for wheeled PTO version) Mounts 4 steel screens with holes of different sizes, both small and large, depending on customer’s needs (2-4-8-10 mm holes supplied) Three-phase flanged electric motor, with star/delta starter and IE3 ammeter High productivity and low energy consumption Motor protection switch with release coil Compact size but high hourly capacity Large hopper for processing even whole cobs Flanged gearbox in oil bath (for PTO version) Fasten cyclone bag strap Swivel discharge curve made of galvanised sheet metal Ideal for corn on the cob, corn mash, grains Low loading hopper, for easy and smooth operation Multi-purpose hammer mill, suitable for the production of both coarse and fine flours Equipped with “CE” safety protections Magnet to stop the accidental introduction of ferrous parts (on request) Dedicated filter unit, to reduce the emission of dust into the air (on request) Freewheel PTO shaft (on request)
