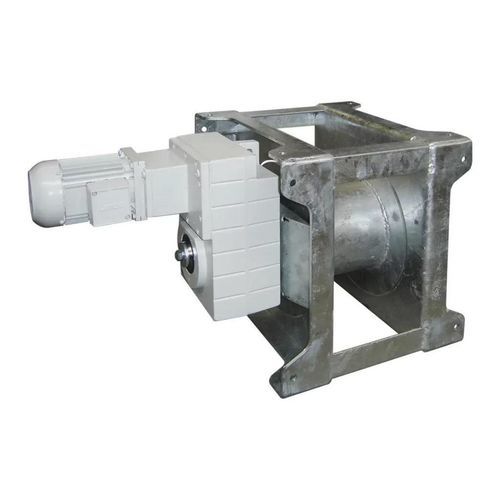

Cable winch EW 5

chainfor manure scrapers

Modern barn manure removal systems require powerful and durable drives to function smoothly. Whether cable winch or chain drive – the right choice ensures reliable and low-maintenance manure removal. Overview of Our Drives: - Whether small farm or large agriculture – choosing the right drive is crucial for efficient barn cleaning. Our drives offer high pulling force, working reliably even under continuous load. Thanks to robust materials and intelligent design, they are particularly durable and require minimal maintenance. Additionally, they allow flexible adaptation to different barn sizes and layouts. Cable Winch Single Drive: - The ideal solution for all barn sizes. Its compact design allows for easy installation and requires little space. Ensures even, reliable manure removal, especially suitable for shorter distances. Functionality: - The drive moves the cable manure removal system via a drum winch with high pulling force. - A robust gearbox ensures even power transmission without high maintenance requirements. Technical Data: - Drive: EW 4 - Motor Power (kW): 0.58, 0.75, 0.75 SE - Runway (m) Single System: Max. 60, 80, 120 - Runway (m) Double System: Max. 40, 60, 90 - Drum Diameter (mm): 200, 250 Cable Winch Double Drive: - Ideal for medium-sized barns. Ensures powerful manure removal over various distances and, thanks to synchronously running winches, provides even cleaning. Functionality: - Operates with a powerful drum winch for even and constant manure removal over long distances. - Ideal for medium-length cable tracks. Technical Data: - Drive: DW 7 - Motor Power (kW): 0.55 – 0.75 - Runway (m): Cable Ø 10 mm: max. 120, Cable Ø 8 mm: max. 150 - Drum Diameter (mm): 1,000 Chain Drive: - Optimal for operations with high manure volume or difficult conditions and serves as an optimal alternative to cable drives. Its robust chain mechanism is extremely durable and prevents slippage or tension loss. Functionality: - A powerful chain reliably drives the manure conveyor belt. - Especially suitable for double systems and heavy loads. Technical Data: - Motor Power (kW): 0.75 - Chain Thickness: 13 mm - Size (LxWxH) in meters: 0.75 x 1.0 x 2.3 - Weight with Deflection Rollers: Approx. 280 kg - Drive Speed: 3.8 m/min Benefits of Our Drives: - Cost savings through durable technology: Made from high-quality, low-wear materials, minimizing expensive repairs and spare parts for years. Less maintenance cost and longer system life. - Reliable operation, even under heavy load: Designed for continuous operation under extreme conditions. Even with intensive use, they run stably and enable uninterrupted manure removal for decades. - Easy integration into existing systems: Thanks to modular design, our drives can be easily integrated into existing manure removal systems. Whether retrofitting or expansion – installation is straightforward and quick. - Optimization of barn hygiene: Efficient drives ensure continuous and thorough manure removal, reducing ammonia and germ formation. This leads to a healthier barn environment and improves animal welfare. Technical Features / Specifications: - High pulling force for reliable operation under continuous load - Robust materials and intelligent construction for longevity - Minimal maintenance required - Flexible adaptation to different barn sizes and layouts - Available as cable winch (single/double) and chain drive - Motor power range: 0.55 – 0.75 kW - Drum diameters: 200 mm, 250 mm, 500 mm, 640 mm, 1,000 mm - Chain thickness: 13 mm - Drive speed: 3.8 m/min (chain drive) - Weight (chain drive): approx. 280 kg
