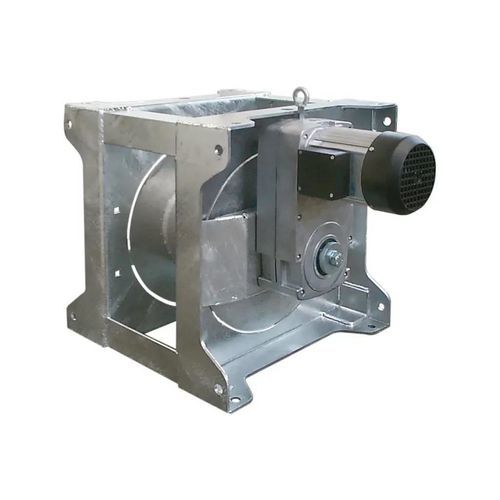

Cable winch EW 4

ropechainfor manure scrapers

Reliable barn technology: Drives that work – without compromise. Modern barn manure removal systems require powerful and durable drives to function smoothly. Whether cable winch or chain drive – the right choice ensures reliable and low-maintenance manure removal. Overview of Our Drives: Whether a small farm or large agricultural operation – choosing the right drive is crucial for efficient barn cleaning. Our drives offer high pulling force that works reliably even under continuous load. Thanks to robust materials and intelligent design, they are particularly durable and require minimal maintenance. They also allow flexible adaptation to different barn sizes and layouts. Rope Winch Single Drive The rope winch single drive is the ideal solution for all barn sizes. Its compact design makes it easy to install and requires little space. It ensures even, reliable manure removal and is particularly suitable for shorter distances. Functionality: - The drive moves the cable manure removal system via a drum winch with high pulling force. - A robust gearbox ensures even power transmission without high maintenance requirements. Technical Data: Drive | Motor Power (kW) | Runway (m) Single System | Runway (m) Double System | Drum Diameter (mm) EW 4 | 0.58 | Max. 60 | Max. 40 | 200 | 0.75 | Max. 80 | Max. 60 | 200 | 0.75 SE | Max. 120 | Max. 90 | 250 EW 5 | 0.55 | Max. 60 | Max. 40 | 500 | 0.75 | Max. 80 | Max. 60 | 500 EW 6 | 0.75 | Max. 150 | Max. 130 | 640 Rope Winch Double Drive The rope winch double drive is ideal for medium-sized barns. It ensures powerful manure removal over different distances and, thanks to synchronously running winches, provides even cleaning. Functionality: - The rope winch double drive works with a powerful drum winch that ensures even and constant manure removal over long distances. - Ideal for medium-length cable runs. Technical Data: Drive | Motor Power (kW) | Runway (m) | Drum Diameter (mm) DW 7 | 0.55 – 0.75 | Cable-ø 10 mm: max. 120 | 1,000 | | Cable-ø 8 mm: max. 150 | Chain Drive The chain drive is optimal for operations with high manure volumes or difficult conditions and serves as an optimal alternative to cable drives. Its robust chain mechanism is extremely durable and prevents slippage or tension loss. Functionality: - A powerful chain reliably drives the manure conveyor belt. - Especially suitable for double systems and heavy loads. Technical Data: Motor Power (kW) | Chain Thickness | Size (LxWxH) in meters | Weight with Deflection Rollers | Drive Speed 0.75 | 13 mm | 0.75 x 1.0 x 2.3 | Approx. 280 kg | 3.8 m/min Benefits of Our Drives: - Cost savings through durable technology: Our drives are made of high-quality, low-wear materials, minimizing expensive repairs and spare parts for years. This means lower maintenance costs and a longer service life for your system. - Reliable operation, even under heavy load: Our drives are designed for continuous operation under extreme conditions. Even with intensive use, they run stably and enable uninterrupted barn cleaning for decades. - Easy integration into existing systems: Thanks to modular design, our drives can be easily integrated into existing manure removal systems. Whether retrofitting or expansion – installation is straightforward and quick. - Optimization of barn hygiene: An efficient drive ensures continuous and thorough manure removal, reducing ammonia and germ formation. This leads to a healthier barn environment and improves animal welfare. Technical Features / Specifications: - High pulling force for reliable operation - Robust, low-maintenance construction - Flexible adaptation to different barn sizes and layouts - Suitable for single and double systems - Motor power range: 0.55 – 0.75 kW - Drum diameters: 200 mm, 250 mm, 500 mm, 640 mm, 1,000 mm - Chain thickness: 13 mm - Drive speed: 3.8 m/min - Weight (with deflection rollers): approx. 280 kg
