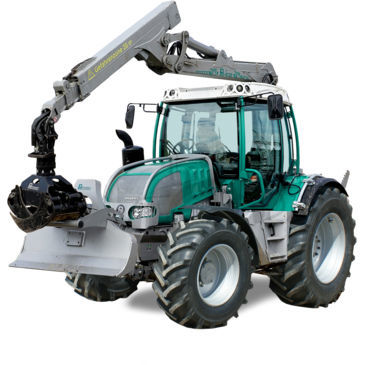

Forestry tractor Pm Trac series
continuously variable6-cylinderwith ROPS

forestry tractor
forestry tractor
forestry tractor
forestry tractor
forestry tractor
forestry tractor
forestry tractor
Add to favorites
Compare this product


Characteristics

Type
forestry
Transmission
continuously variable
Number of cylinders
6-cylinder
Other characteristic
with cab, with ROPS, front PTO
Engine power

205 ch, 253 ch, 292 ch (205 hp)

PTO speed

1,000 rpm, 1,450 rpm (6,283.2 rad.min-1)

Maximum speed

50 km/h (31.1 mph)

Fuel tank capacity

400 l (105.7 gal)

Description

At the ZLF 2004 in Munich, Pfanzelt set standards with the presentation of the Pm Trac multipurpose tractor. The development trend - using a tractor chassis from the large-scale production to the completely own tractor chassis - makes the Pm Trac unique. Among other things, the new, continuously variable and power-split transmission variaDRIVE - a proprietary development for Pfanzelt forestry machines - offers new possibilities and contributes its share to the motto of the new Pm Trac generation: Versatility is its strength - working and operating comfort its virtue. The Pm Trac multipurpose tractor of the new Generation 38 is optimised for combined use in agriculture, forestry, and landscaping thanks to its unique vehicle concept. The core of the Pm Trac machine concept includes the centrally located large tractor cab and the central superstructure space above the rear axle. Fast and flexible adaptation to different working conditions is based on the Pfanzelt System Attachment (PSA). -variaDRIVE continuously variable split transmission, up to 50 km/h (max. speed with reduced engine speed) -Hydraulic system with 160 l/min at 210 bar (optional 200 l/min and additional power pack directly on the gearbox PTO) -New software and touchscreen operating terminals for machine control Areas of application Forwarding of long and short timber For long and short timber forwarding, the rear mounting space, which is located directly above the rear axle, is used for mounting the cable winch and forest crane. Depending on the area of application, a rear crane (low column) or a loading crane (high column) can be set up with a favourable centre of gravity.
