Cattle waterer 221860

bowlautomaticcast iron

Summary

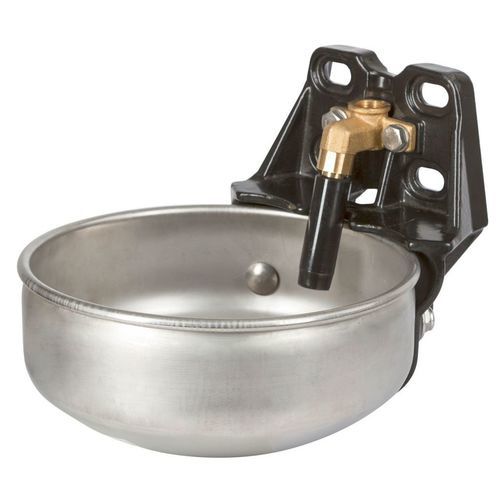

This automatic bowl drinker with AISI 304 stainless steel bowl features a pendulum valve and cast-iron support. Designed for livestock watering with high flow capacity.

General characteristics
Automatic bowl drinker in stainless steel bowl; pendulum valve; cast-iron supporting frame; available in multiple models.

Product details

• Bowl material: AISI 304 stainless steel
• Valve: pendulum valve
• Supporting frame: cast iron
• Bowl: diameter Ø 27 cm, depth 12 cm
• Capacity: 5 litres
• Water connection: Ø 1/2" (top or bottom connection possible)
• Approximate total height: 23 cm
• Available models: wall mounting; pipe version (including clamp)
• Recommended for: dairy cattle (high water flow)

Technical notes and recommendations

• When valves are supplied from public water mains, water pressure can be very high: use a pressure reducer to ensure stable operation of the drinkers.
• If supplied by electric pumps, a device to absorb water hammer may be necessary in addition to pressure management.
• To protect the drinker, purchase of the protective bracket (size 2) is recommended.

Commercial information
All prices are inclusive of VAT.

Characteristics / technical specifications

• Material: AISI 304 stainless steel (bowl)
• Valve: pendulum valve
• Frame: cast iron
• Bowl diameter: 27 cm
• Bowl depth: 12 cm
• Capacity: 5 L
• Water connection: Ø 1/2" (top or bottom)
• Total height: approx. 23 cm
• Models: wall mounting; pipe version (including clamp)
• Recommendations: pressure reducer if connected to public mains; water-hammer absorber if fed by pump
• SKU / codes available on page: 221860, 221860T (product variants)
