Cattle waterer 652Afor horsestroughgalvanized steel
Add to favorites
Compare this product
Characteristics
- Animal type
- cattle, for horses
- Form
- trough
- Material
- galvanized steel, stainless steel
- Other characteristic
- floor-mounted, with parts-tipper
- Capacity
Max.: 125 l
(33 gal)Min.: 65 l
(17.2 gal)- Height
Max.: 81 cm
(32 in)Min.: 81 cm
(32 in)- Width
Max.: 60 cm
(23.62 in)Min.: 60 cm
(23.62 in)- Lenght
Max.: 200 cm
(78.7 in)Min.: 100 cm
(39.4 in)
Description
Description

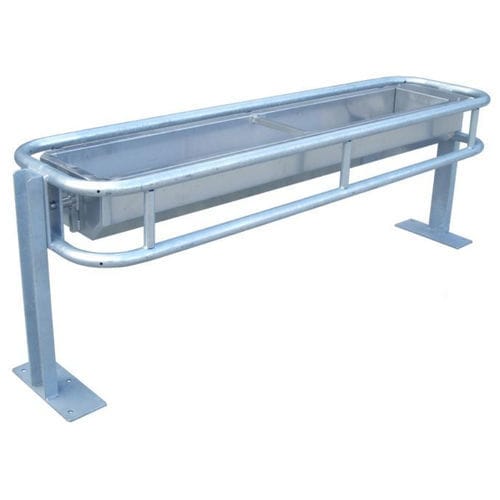

The floor-mounted tilting trough waterer is an automatic drinking system for cattle and horses designed to ensure a continuous, hygienic water supply. The bowl is manufactured in stainless steel AISI 304, corrosion-resistant and easy to clean, with a thickness of 15/10 for adequate rigidity. The protective frame is made of hot-dip galvanized tubular steel with feet for floor mounting, providing stability and protection from accidental impacts.
The system includes a float Ø 3/4 with male thread and a brass valve body to automatically maintain the water level. A 100 cm stainless flexible hose is supplied with a straight 3/4 female connector and a curved 3/4 female connector to simplify installation.
General technical features
Model table
Model | Overall dimensions (L x W x H) | Bowl net dimensions (L x W x H) | Drinking space (cm) | Capacity (L) | Weight (kg)
100 cm | 140 x 60 x 81 cm | 100 x 32 x 23 cm | 88 | 65 | 70
150 cm | 190 x 60 x 81 cm | 150 x 32 x 23 cm | 138 | 95 | 80
200 cm | 240 x 60 x 81 cm | 200 x 32 x 23 cm | 188 | 125 | 90
Technical notes
When floats are fed from public water mains, inlet pressure may be high: it is recommended to use a pressure reducer to maintain a constant operating pressure. If electric pumps are used, install a device to prevent water hammer in addition to a pressure reducer.
Technical specifications
The floor-mounted tilting trough waterer is an automatic drinking system for cattle and horses designed to ensure a continuous, hygienic water supply. The bowl is manufactured in stainless steel AISI 304, corrosion-resistant and easy to clean, with a thickness of 15/10 for adequate rigidity. The protective frame is made of hot-dip galvanized tubular steel with feet for floor mounting, providing stability and protection from accidental impacts.
The system includes a float Ø 3/4 with male thread and a brass valve body to automatically maintain the water level. A 100 cm stainless flexible hose is supplied with a straight 3/4 female connector and a curved 3/4 female connector to simplify installation.
General technical features
- Protective frame in hot-dip galvanized tubular steel with feet for floor fixing
- Protective tube size: 48.3 mm x 2.5 mm
- Bowl in stainless steel AISI 304 - thickness 15/10
- Float Ø 3/4 with male thread, valve body in brass
- Supplied accessories: stainless flexible hose 100 cm with straight 3/4 female connector and curved 3/4 female connector
- Available lengths: 100 cm, 150 cm and 200 cm
Model table
Model | Overall dimensions (L x W x H) | Bowl net dimensions (L x W x H) | Drinking space (cm) | Capacity (L) | Weight (kg)
100 cm | 140 x 60 x 81 cm | 100 x 32 x 23 cm | 88 | 65 | 70
150 cm | 190 x 60 x 81 cm | 150 x 32 x 23 cm | 138 | 95 | 80
200 cm | 240 x 60 x 81 cm | 200 x 32 x 23 cm | 188 | 125 | 90
Technical notes
When floats are fed from public water mains, inlet pressure may be high: it is recommended to use a pressure reducer to maintain a constant operating pressure. If electric pumps are used, install a device to prevent water hammer in addition to a pressure reducer.
Technical specifications
- Bowl material: stainless steel AISI 304, thickness 15/10
- Protective structure: hot-dip galvanized tubular steel
- Tubular dimensions: 48.3 mm x 2.5 mm
- Float: Ø 3/4 with male thread
- Valve body: brass
- Supplied accessories: stainless flexible hose 100 cm, straight 3/4 female connector, curved 3/4 female connector
- Available lengths: 100 cm, 150 cm, 200 cm
- See model table for capacity and weight per model
