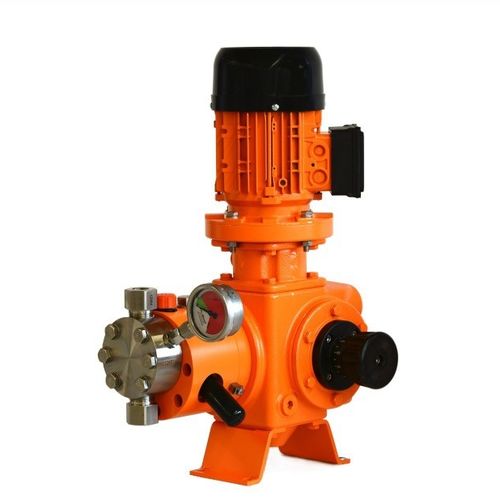

Fuel pump Orlita® Evolution 1 LC
diaphragmhydraulically-operateddosing

fuel pump
fuel pump
Add to favorites
Compare this product


Characteristics

Application
fuel
Other characteristics
diaphragm, dosing, hydraulically-operated
Flow

130 l/h (34.3424 us gal/h)

Pressure

28 bar (406.11 psi)

Description

Maximum process reliability and flexibility. The Orlita® Evolution hydraulic diaphragm metering pump Evolution 1 LC is an extension of the proven Evolution pump. It boasts a 15-metre stroke length, covering the capacity range from 5 – 130 l/h at 260 – 28 bar. A wide range of drive versions is available, including some for use in Zone 1 or Zone 2 areas at risk from explosion with ATEX certification. The Orlita® Evolution product range is designed to comply with API 675. Your benefits -Maximum process reliability -PTFE multi-layer diaphragm with integral diaphragm rupture warning system -Integral hydraulic relief valve -The diaphragm position control protects against impermissible operating statuses (e.g. no damage to the pump in the event of a blockage on the suction or discharge side) -Metering reproducibility is better than ± 1% within the 10-100% stroke length adjustment range under certain defined conditions and with proper installation -Continuous venting of the oil chamber ensures reliable operation Field of application -Oil and gas industry -Metering of reactants and catalysts in the chemical industry -Volume-proportional metering of chemicals/additives in the treatment of boiler feed water -Level-dependent metering of auxiliary agents in industrial production engineering, for instance hot wax metering in the production of adhesive strips
