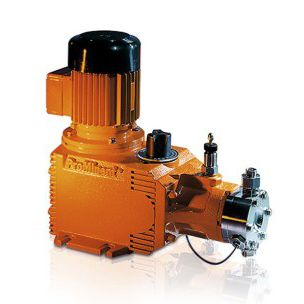

Fuel pump Hydro 2 Series
diaphragmdosingelectric

fuel pump
fuel pump
Add to favorites
Compare this product


Characteristics

Application
fuel
Other characteristics
diaphragm, dosing, electric, hydraulically-operated
Power

370 W, 550 W (0.5 hp)

Flow

Min.: 3 l/h (0.79252 us gal/h)

Max.: 72 l/h (19.02039 us gal/h)

Pressure

Min.: 25 bar (362.59 psi)

Max.: 100 bar (1,450.38 psi)

Description

For flexible metering with excellent process reliability in the medium pressure range. The Hydro/ 2 hydraulic diaphragm metering pump (HP2a) together with the Hydro/ 3 and Hydro/ 4 pumps represent an integrated product range with stroke lengths of 15 and/or 20 mm. This covers the capacity range from 3 to 1,450 l/h at 100 – 7 bar. A wide range of drive versions is available, including some for use in Exe and Exde areas with ATEX certification. The Hydro product range is designed to comply with API 675 among others.
