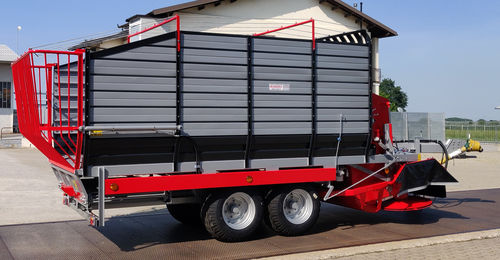

Loader wagon RS75 SB
mounted2-axleforage

loader wagon
loader wagon
Add to favorites
Compare this product


Characteristics

Construction
self-loading
Type
mounted
Number of axles
2-axle
Application
forage
Payload
0 t...10 t
Brake system
with mechanic braking
Other characteristic
self-unloading, with mower, side-to-side
Empty weight

2,850 kg
(6,283.2 lb)

Recommended power

75 ch
(75 hp)

Load volume

21 m³, 26 m³
(741.608 ft³, 918.181 ft³)

Loading case lenght

4,700 mm
(185 in)

Loading case width

2,000 mm
(78.7 in)

Loading case hight

1,650 mm
(65 in)

Description

The Self-Loading Cutter Wagon RS 75 SB is hydraulically driven and equipped with a retractable cross conveyor for the side unloading. This conveyor can be controlled both from the driver’s seat and from the rear of the machine. Technical Features STRUCTURE: Robust frame and drawbar in high strength steel (S355) with special attention paid to thickness, tubular section, and welds. FEM simulations to verify the structural tightness of each single component of the machine. A segmented double bogie axle system is standard. The independent oscillation on both sides minimizes the stresses on the frame. Mower on independent frame that allows free oscillation. MOWER Two-drum cutter bar with helical gear transmission that transmits more power, reducing consumption and noise. High resistance steel discs. Hydraulic lightening system (on request), which drastically reduces mechanical stress on the mower / elevator unit, increases the life of the machine and provides a dynamic response to the roughness of the ground. Perfectly shaped collector plate which, thanks to the turbulence of the drums, conveys the forage directly into the loading elevator. The product never touches the ground and remains clean. LOADING SYSTEM Loading elevator with two chains equipped with forks that transport the product without damaging it. The elevator is hydraulically driven. It can mount a certain number of knives to cut the forage and make unloading easier. UNLOADING SYSTEM Hydraulically driven chain conveyor sliding on the loading platform. Two unloading solutions: sidewards via retractable cross conveyor or by using the simple hydraulic tailgate.
