Cheese vat

Overview

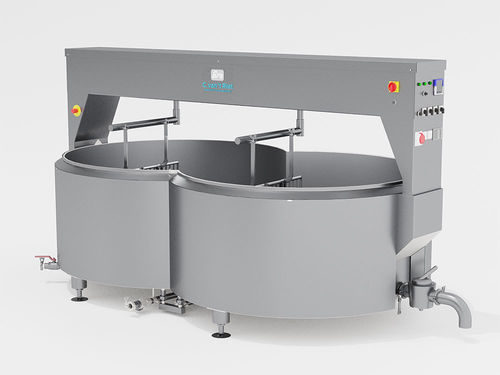

The Double O open three‑wall stainless steel cheese vat is designed for artisanal and industrial curd preparation. It provides controlled heating and cooling, a motor-driven agitator for mixing and curd cutting, and pneumatic tilting for efficient draining and cleaning. Capacities range from 3000–5000 L and the unit is typically combined with a drainage table.

Features

• Capacity 3000–5000 L
• Pasteurization capability
• Fast heating and cooling via spray piping system
• Temperature measured by sensor in the bottom of the vat
• Capability to keep milk refrigerated in the vat
• Intuitive button controls; touchscreen available as an option
• Pneumatic tilt for safe and complete draining
• Low maintenance design
• 3A certified sanitary finish
• Customer-specific configuration according to available energy source

Technical specifications

• Type: Open, three‑wall stainless steel cheese vat
• Finish: Food‑safe, 3A certified
• Capacity range: 3000–5000 L
• Heating/Cooling: Spray piping system for rapid heat transfer
• Temperature control: Sensor located in bottom of vat
• Agitator: Motor-driven, controlled via control box for mixing and curd cutting
• Tilt/Draining: Pneumatic controls for tilting and draining
• Refrigeration: Possible to keep milk refrigerated in the vat
• Operation interface: Push-button control; touchscreen option
• Maintenance: Designed for low maintenance and easy cleaning
• Customization: Energy-source specific configurations available
• Typical integration: Usually combined with a drainage table

Options & customization

• Touchscreen control interface
• Different heating sources (electric/steam/hot water) per customer site
• Additional sensors and automation for batch tracking
• Custom dimensions and integration adapters for drainage tables

Applications & integration

• Artisanal and small-scale industrial cheese production
• Curd preparation and cutting
• Integration with drainage tables and downstream molding/pressing lines
• Suitable for dairy processors requiring sanitary, easily drivable equipment
