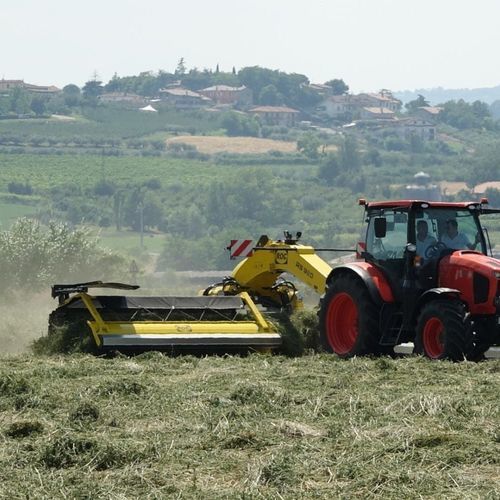

Belt rake RS 920

Product description
The Continuous Merger RS 920 is a 2-element machine with 3 cams per element. It provides an adjustable working width from 7.3 m to 9.1 m via a double hydraulic rocker-arm system that allows changing the distance between the two pick-ups even during operation.

Discharge configurations & operation
The pick-ups can be joined or separated to offer multiple discharge patterns: one belt right + one left; both belts right; both belts left; middle discharge when separated; or combinations with one belt in the middle and one at the side. When pick-ups are joined, discharges can be set to right, left, or split.

Standard equipment

• 6-bar pick-up
• Belt and pick-up cover kit with roller
• 8 tandem wheels with spring suspension (manual adjustment)
• Hydropneumatic suspension with cylinders
• Automatic belt switch-off; working and flashing lights
• Wider strips kit for hard crop
• Hydropneumatic road suspension system

Additional information
This version can operate with one element folded and does not include a braking system. Road transport width is 3 m (9'10").

Options

• 8-tandem wheel electrical adjustment
• Hydraulic swath guard (right side)
• Hydraulic swath guard (left side)
• Airbrake system homologated to Mother Regulation

Technical specifications

• Model: RS 920
• Type: Continuous merger with 2 elements, each with 3 cams
• Working width: 7.3–9.1 m (23'11"–29'10")
• Hydraulic system: Double hydraulic rocker-arm system adjustable during work
• Discharge configurations: Multiple (right/left/middle combinations)
• Standard equipment: See list above
• Folding: Can operate with one element folded
• Braking: This version has no braking system
• Road transport width: 3 m (9'10")
• Available options: See options list above
