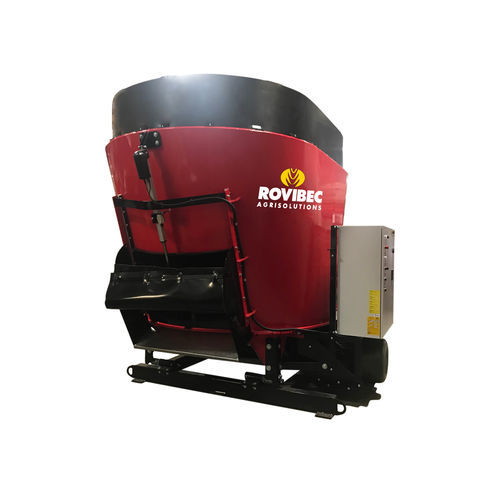

Vertical mixing wagon M40S
stationaryfront dischargesingle-auger

vertical mixing wagon
vertical mixing wagon
vertical mixing wagon
vertical mixing wagon
vertical mixing wagon
vertical mixing wagon
vertical mixing wagon
Add to favorites
Compare this product


Characteristics

Auger orientation
vertical
Mobility
stationary
Discharge type
front discharge
Number of screws
single-auger
Other characteristic
with weighing system, electric motor
Capacity in m³

Min.: 10 m³
(353.1 ft³)

Max.: 12.2 m³
(430.8 ft³)

Description

A brand new vertical mixer for your Total Mixed Ration. A further improved design and a “Plug&Play” conception. Innovation and performance through a direct drive motorization. One single unit, all-in and ready to use! This new direct drive mixer , efficient and energy-saving, with a capacity fitting medium-sized farms. WANT MORE? .Made of Canadian steel 44W .Equiped with a 3/4” (19mm) auger .Its tub is covered with a stainless steel liner .High efficiency Direct Drive motor .An enclosed PTO, lubrication-free .A Heavy Duty planetary .All-in, standard: Balance, loadcells, control panel, 4 knives, door electric cylinder, restrictor plates and adjustable legs! A multifonction mixer: straw, reserve, TMR… It can do it! More performances and less maintenance! The M40S vertical direct drive mixer will become your day-to-day ally for an unmatched TMR. TECHNICAL SPECS RUBBER EXTENSION:A 12" (30.5 cm) or 18" (45.7 cm) extension is available as an option MOTORIZATION:High efficiency Direct Drive motor with variable speed 40HP as standard, 50HP s an option Left, right or back motorization CONTROL PANEL AND DRIVE:Manual control pannel 30HP, 40HP or 50HP Drive control up to 4 speed motor for auger rotations PLANETARY:Heavy Duty planetary PTO:Enclosed PTO, lubrication free SCALE AND LOADCELLS:Balance DINAMICA or DIGISTAR and 4 loadcells, up to 10 000Lbs (4535 Kg) DISCHARGE DOOR:Discharge door controlled by an electric cylinder STEEL:Canadian steel 44W - 3/4 (19 mm) thick tub Floor and 1/4” (6mm) for the walls 3/4" (19mm) auger KNIVES:6 knives and 2 strongback included
