Silo pressure switch IPE series

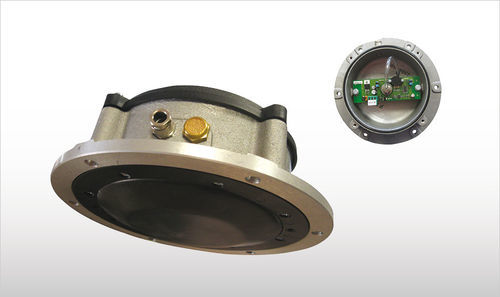

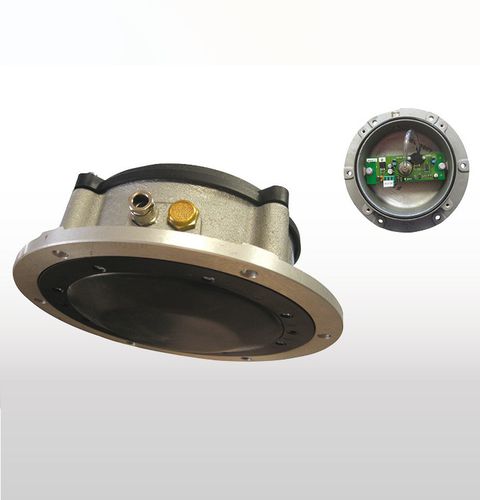

The IPE-type Electronic Pressure Meter efficiently supervises the pressure rising inside bins or silos during filling and purging of tankers. Description: The IPE-type Electronic Pressure Meter consists of a self-cleaning wear and temperature-resistant membrane, a casing manufactured from aluminium alloy, an electronic card and assembly fittings (bolts and gasket). Function: By means of an electronic reading device which is activated by a membrane, the IPE-type Electronic Pressure Meter supervises the pressure rising inside bins or silos during filling and purging of the tanker. Features: - Operating temperature: -30 ~ 80 °C (-22 ~ 176 °F) - Cable size: 2 x 1.5 mm² (2 x 0.002 sq in) - Electronic card - Protection: IP 55 Benefits: - Self-cleaning wear and temperature-resistant membrane suitable for various materials - Equipped with circuit board (IPE) - Assembly fittings (bolts and gasket) Options: To be installed on top of IPX-type weld-on spigot (to be ordered separately). Application examples: Supervising pressure in bins or silos during filling and purging of tankers. Visual Features: - Self-cleaning wear and temperature-resistant membrane - Equipped with circuit board - Assembly fittings included Technical Specifications: - Type: Electronic Pressure Meter - Model: IPE - Operating temperature: -30 ~ 80 °C (-22 ~ 176 °F) - Cable size: 2 x 1.5 mm² (2 x 0.002 sq in) - Protection: IP 55 - Membrane: Self-cleaning, wear and temperature-resistant - Casing: Aluminium alloy - Electronic card: Included - Assembly fittings: Bolts and gasket included - Options: To be installed on IPX-type weld-on spigot (ordered separately)
