Silo pressure switch IPM series

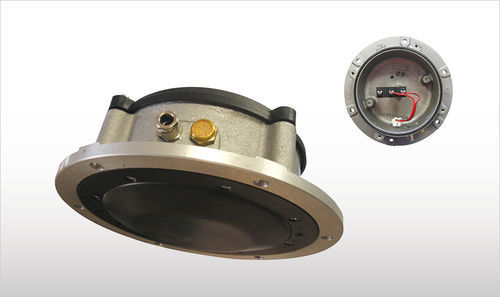

The IPM-type Pressure Switch efficiently signals excess pressure inside bins or silos during filling and purging of tankers using a membrane switch. It is also used as a level indicator inside hoppers. Description: - The IPM-type Pressure Switch consists of a self-cleaning wear and temperature-resistant membrane, a casing manufactured from aluminium alloy, a contact switch and assembly fittings (bolts and gasket). Function: - The IPM-type Pressure Switch, by means of a membrane switch, signals excess pressure inside bins or silos during filling and purging of the tanker. It is also used as a level indicator in hoppers. Features: - Operating temperature: -30 ~ 80 °C (-22 ~ 176 °F) - Micro-switch - Protection: IP 55 - Pre-set activating pressure: 0.02 ~ 0.04 bar (0.3 / 0.6 psi) Benefits: - Self-cleaning wear and temperature-resistant membrane suitable for various materials - Equipped with contact switch - Assembly fittings (bolts and gasket) Options: - To be installed on top of IPX-type weld-on spigot (to be ordered separately). Technical Specifications: - Type: Pressure Switch - Model: IPM - Operating temperature: -30 ~ 80 °C (-22 ~ 176 °F) - Micro-switch - Protection: IP 55 - Pre-set activating pressure: 0.02 ~ 0.04 bar (0.3 / 0.6 psi) - Self-cleaning wear and temperature-resistant membrane - Aluminium alloy casing - Contact switch - Assembly fittings included (bolts and gasket) - To be installed on top of IPX-type weld-on spigot (to be ordered separately)
