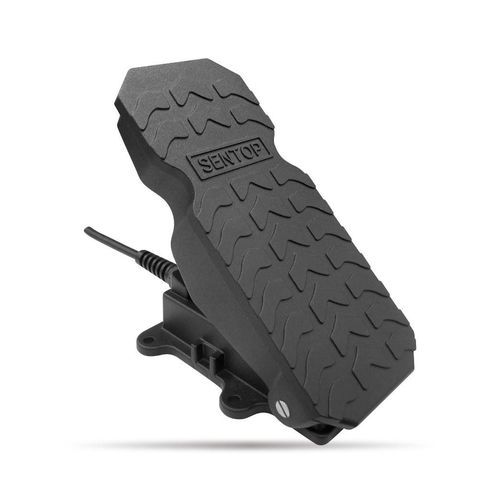

Electronic foot-switch PHF8

industrialfloor mountedfor forklift trucks

Product
PHF8 magnetic-type floor pedal for precise position sensing in vehicle and industrial control systems. Hall-effect IC sensor, available with single or redundant outputs and optional kick-down device.

Key features

• Hall effect IC type
• Floor pedal design
• Kick-down device available
• Single or double full redundant outputs
• CANopen output (standard)
• Protection degree IP65

General specifications

• Model: PHF8
• Operating angle: Approx. 20°
• Operating force: Approx. 10–60 N
• Mechanical life expectancy (pedal): 2,000,000 operations
• Mechanical life expectancy (switch): 20,000,000 operations
• Operating temperature: -40℃ to +85℃
• Storage temperature: -40℃ to +85℃
• Vibration: 10–55 Hz, 98 m/s²
• Shock: 294 m/s²
• Mass: Approx. 850 g
• Protection degree: IP65

Electrical specifications (Hall Effect)

• Applied voltage: 5 V ±10%
• Output signal: 0–5 V
• Current consumption (no-load): <16 mA
• Output deviation at both ends: <1% VCC
• Load resistance: >100 kΩ
• Linearity tolerance: ±3%
• Resolution: 4096 (12 bit)
• Update rate: 0.3 ms
• Insulation resistance: >1000 MΩ (500 VDC)
• Dielectric strength: 1 min (500 VAC)

Electrical specifications (Switch)

• Rating: 5 A / 30 VDC
• Electrical life expectancy: 50,000 operations
• Mechanical life expectancy: 20,000,000 operations
• Insulation resistance: >1000 MΩ (500 VDC)
• Dielectric strength: 1 min (1000 VAC)

Options

• Other output signals: PWM, RS485
• Custom electrical characteristics and cable lengths available
• Optional connectors: DTM04-6P, AMP 174359-2

Applications

• Vehicle control systems (industrial & off-road)
• Construction and material-handling machinery
• General industrial control requiring redundant or configurable outputs
