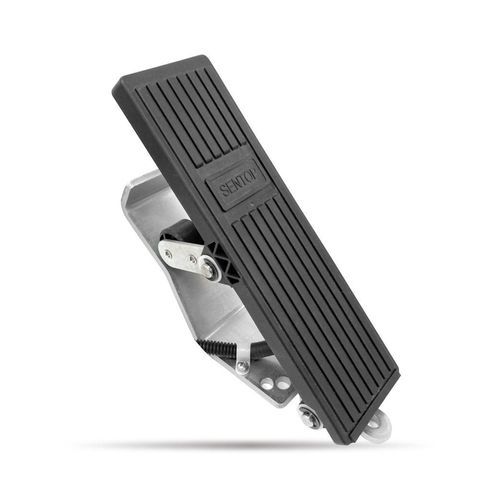

Electronic foot-switch HC60FCA

analogHall effect

Product
HC60FCA
Magnetic-type pedal (Hall-effect)

Features

• Hall effect IC type
• Low-cost version
• Suitable for various engine interfaces

Dimension
Dimension drawing available (file name: 尺寸图_SENTOP_HC60FCA.jpg)

General Specifications

• Operating angle: 17°±2°
• Operating force: 40–50 N
• Mechanical life expectancy: 10,000.000
• Operating temperature: -40°C ~ 85°C
• Storage temperature: -50°C ~ 120°C
• Mass: Approx. 860 g
• Protection degree: IP66

Electrical Specifications

• Applied voltage: 5V±10%
• Output signal: 0–100% Vcc
• Current consumption (no-load): ≤20 mA
• Independent linearity tolerance: ±2%
• Resolution: 4096 (12 Bit)
• Update rate: 0.3 ms
• Insulation resistance: >1000MΩ (500V.D.C)
• Dielectric strength: 1 min (500V.A.C)

Terminal Connection Instructions

• Terminals: Signal I; Signal II
• Color / Function mapping:
• A: Black / GND; Yellow / OUT2
• B: Green / OUT1; Blue / GND
• C: Red / 5VDC; White / 5VDC

Special Specifications Available

• Other output signals: PWM
• Electrical specifications: Custom output ranges

Brochure
Brochure available (PDF).

Technical characteristics

• Operating angle: 17°±2°
• Operating force: 40–50 N
• Mechanical life expectancy: 10,000.000
• Operating temperature: -40°C ~ 85°C
• Storage temperature: -50°C ~ 120°C
• Mass: Approx. 860 g
• Protection degree: IP66
• Applied voltage: 5V±10%
• Output signal: 0–100% Vcc
• Current consumption (no-load): ≤20 mA
• Independent linearity tolerance: ±2%
• Resolution: 4096 (12 Bit)
• Update rate: 0.3 ms
• Insulation resistance: >1000MΩ (500V.D.C)
• Dielectric strength: 1 min (500V.A.C)
