Storage tank cover CVCa
Add to favorites
Compare this product
Description

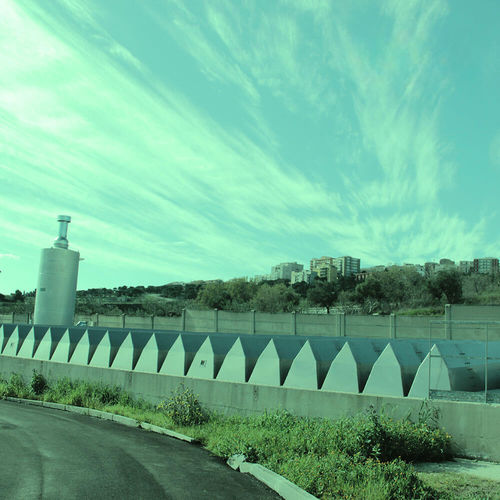

Overview Aluminium covers CVCa type are used in water treatment plants for treatment tanks to protect the contents from external contaminations such as bad weather, dust and leaves, and to protect the nearby environment from unpleasant odours emitted by the tank contents. They are suitable for both quadrangular and circular tanks.
When to use them Used on treatment tanks where protection from external contamination and odour containment are required; applicable to both quadrangular and circular basins.
How they are made The covers are made of tiles which fit together to create a rigid roof. They can be designed to be walkable on request. The system is suitable for air-tightness close to atmospheric pressure and is able to withstand typical loads such as wind, snow and seismic actions.
Applications For quadrangular basins, tiles with usable span that can vary continuously from 1 to 20 meters can be supplied. For circular basins, tiles with usable span that can cover a variable diameter from 6 to 48 meters can be supplied.
How they are proposed Sereco offers the complete solution of engineering, supply and supervision of installation to address site-specific civil and electromechanical requirements and achieve the expected cover performance.
Strengths
Technical characteristics / specifications
When to use them Used on treatment tanks where protection from external contamination and odour containment are required; applicable to both quadrangular and circular basins.
How they are made The covers are made of tiles which fit together to create a rigid roof. They can be designed to be walkable on request. The system is suitable for air-tightness close to atmospheric pressure and is able to withstand typical loads such as wind, snow and seismic actions.
Applications For quadrangular basins, tiles with usable span that can vary continuously from 1 to 20 meters can be supplied. For circular basins, tiles with usable span that can cover a variable diameter from 6 to 48 meters can be supplied.
How they are proposed Sereco offers the complete solution of engineering, supply and supervision of installation to address site-specific civil and electromechanical requirements and achieve the expected cover performance.
Strengths
- Easy assembly and disassembly
- Corrosion resistance
- Very light self-supporting tiles
- Materials resistant to continuous and accidental strikes and loads
- Possibility of sealing to make the cover watertight
Technical characteristics / specifications
- Material: aluminium tiles
- Configuration: modular tiles fitted together to form a rigid roof; walkable on request
- Air-tightness: suitable for sealing close to atmospheric pressure
- Usable span (quadrangular basins): from 1 m up to 20 m (continuous range)
- Usable diameter (circular basins): from 6 m up to 48 m
- Structural resistance: designed to withstand wind, snow and earthquake loads
- Corrosion resistance and resistance to accidental impacts
- Possibility to seal the cover to achieve watertightness
- Complete supply: engineering, fabrication, supply and installation supervision available
