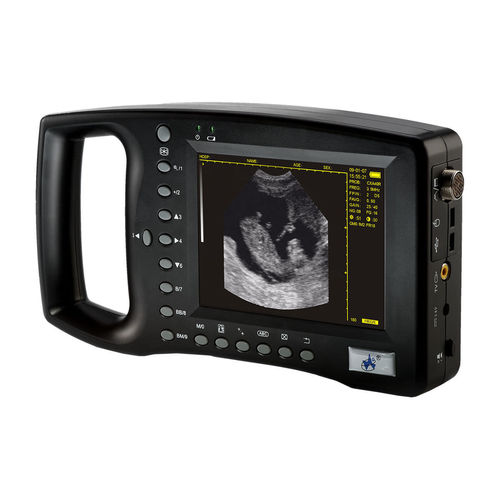

Black and white veterinary ultrasound system WED-3100V
hand-heldfor large animalsfor small animals

black and white veterinary ultrasound system
black and white veterinary ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
hand-held
Type of animal
for small animals, for large animals
Scanning method
linear, convex array, microconvex array
Applications
for abdominal imaging, for cardiac imaging
Other characteristics
battery powered, with real time viewing (RTV), black and white

Description

Vet B-Ultrasound Diagnostic System Clinical application For clinical diagnosis of horses, cattle, sheep, pigs, cats, dogs and other animals Main Unit Parameters Frequency:2.0MHz-7.5MHz Cine-loop:≥400 frames Image Storage:≥64 frame;non-volatile Image Adjustment:Left/Right, Up/Down, Brightness, Contrast Ratio, Focus Position Image Processing:Pseudo-color, Image smoothing, Histogram and Gamma Correction Measurement:General Measurement: Distance, Perimeter, Area and Volume Obstetric Measurement:Distance, Perimeter, Area, Volume, Obstetrics (GA measurement for horses, cattle, sheep, pigs, cats and dogs etc.) Report:Automatically reports Text:Date, Clock, Name, Gender, Age, Doctor, Hospital, Full-screen character editing External Ports:Video Port, Mouse Port and USB2.0 Port Body Mark:16 Types Battery Capacity:≥2200MAh Features · WED-3100 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies and so onAll these technologies can endure its image with clarity, stability and high resolution. · Combined power supply mode of AC adapter and built-in Li-ion chargeable battery, 3 battery charging modes and the specialized brownout mode enables more lasting battery operation. · Four display modes: B, B+B, B+M, M; · 56 levels gray scale. · The handle structure and plastic injection model can satisfy out door diagnosis.
