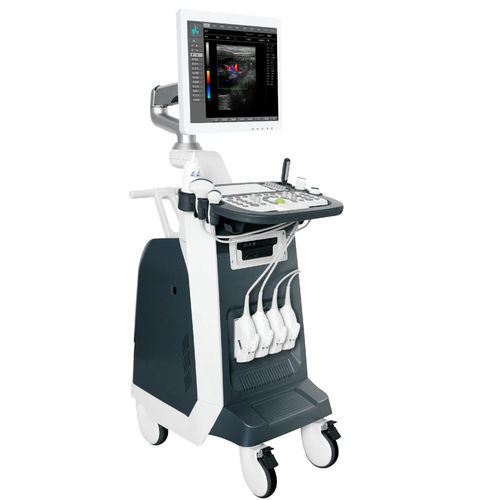

Portable, with trolley veterinary doppler ultrasound system FDC8100V
for cattlefor equinesfor small animals

portable, with trolley veterinary doppler ultrasound system
portable, with trolley veterinary doppler ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
portable, with trolley
Type of animal
for cattle, for equines, for small animals
Scanning method
linear, convex array, microconvex array
Applications
for abdominal imaging, for cardiac imaging, for musculoskeletal imaging

Description

Vet Color Doppler Ultrasound Diagnostic System Clinical application For clinical diagnosis of horses, cattle, sheep, pigs, cats, dogs and other animals Ultrasound Imaging Technology 1. World-advanced ultrasound platform and architecture An 8-core DSP processor and a front-end ultrasound chip with the latest generation of "digital demodulator" is adopted, providing powerful computing capability, high integration, low power consumption as well as seamless upgrade which supports elastography. 2. Sparse transmit & multi-beam parallel processing technology Plane-wave transmitting as well as 16-beam parallel receiving and processing improve the frame rate of image and blood sensitivity in B + C and B + C + D modes, achieving triplex display. 3. Pulse inversion harmonic imaging technology Superior to traditional tissue harmonic imaging technology, pulse inversion harmonic imaging technology is applied to suppress side lobes and improve contrast resolution of the tissue with counteracted fundamental and enhanced harmonic. 4. Synthetic aperture beam-forming technology Break of restrictions traditional DAS beam-forming algorithm has on the number of physical channels generates excellent images both in near field and in far field with smaller hardware and lower transmit power. 5. A continuous transmit focus at every pixel · The distance differences of transmitting sound waves and those of receiving sound waves are calculated simultaneously, resulting to higher imaging precision and accuracy. · Diagnostic differences caused by differentiation of operators are lessened with no focus displayed and no need of manual adjustments.
