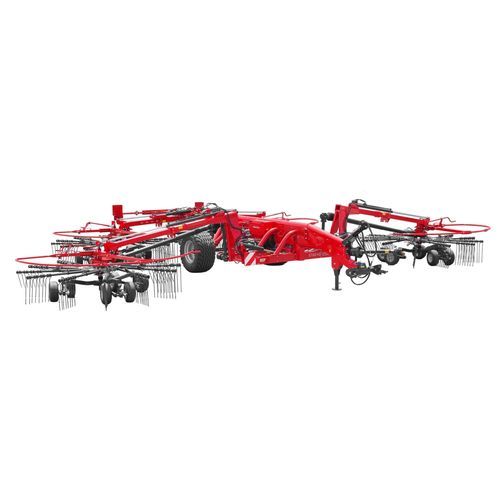

Rotary rake STAR HD 1250|50 TC H

center deliverymulti-rotorharvesting

The trailed four-rotor rake from the HD line is designed for professional raking on large areas. It produces an even, clean central swath to simplify harvesting and reduce time and fuel consumption.

Key features

• Trailed four-rotor design with central swath delivery for easy harvesting.
• Pivoting 2-point hitch providing a ±75° steering angle for excellent tractor following.
• Y-drive for rotors, reducing PTO shaft working angle and extending PTO shaft life.
• Electro-hydraulic control for working height adjustment, automatic folding (working and transport positions), and separate or partial rotor lifting.
• Hydropneumatic suspension and 3D rotor mounting combined with a walking tandem axle for superior ground adaptation and reduced forage contamination.

Standard equipment

• Hitch: Transport frame with 2-point linkage.
• Driveline: PTO shaft with safety clutch.
• Hydraulic connection: 1x Load Sensing (LS).
• Working height adjustment: Hydraulic adjustment.
• Rotor lift: Electro-hydraulic separate control.
• Rotor chassis: Double swivel wheel (front on the rotor).
• Lighting equipment for road transport.

Technical specifications

• Working width: 9.9-12.5 m
• Swath width: 1.3-2.2 m
• No. of double spring tines per arm: 4
• No. of tine arms per rotor: 12-13
• Rotor diameter: 3.33 m
• PTO rotation speed: 540 rpm
• Recommended PTO speed: 400-500 rpm
• Weight: 5150 kg
• Power requirement: 89/120 kW/HP
• Capacity: 18.5 ha/h
• Transport width: 2.99 m
• Transport height: 3.3-3.99 m
• Transport length: 9.5 m
• Tyres (rotor): 16x6,50 - 8
