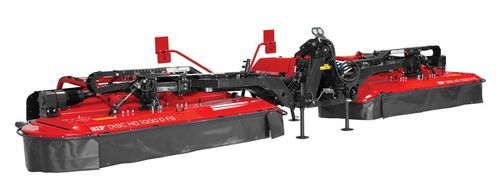

Mounted mower DISC HD 1000 D FSC BC

disc16 discsfolding

Product overview
The double-mounted disc mower conditioner with an innovative drive and robust design delivers controlled cutting and conditioning for professional forage production.

Main features

• Robust 3-point linkage with hydro-pneumatic suspension (HPS) for responsive ground following.
• Innovative drive with OMS notification and safety clutches to monitor operation and protect cutter bars.
• Telescopic arms for working width adjustment and swath width flexibility.
• Patented mechanical transport protection that triggers automatically for safe transport and storage.
• Optional belt conveyor (BC) for swath delivery when using a conditioner to speed harvesting and reduce dry matter loss.

Transport and operation
Design enables compact transport dimensions and easy storage; hydraulic side folding and patented front protection simplify handling.

Suspension and control
Separated hydraulic suspension for left and right sides, operable from the tractor. Select Control unit available; ISOBUS ready to allow terminal control from non‑ISOBUS tractors.

Technical data

• Working width: 9.2-10.2 m
• Number of discs: 16
• Disc rotation: combined
• PTO speed: 1000 rpm
• Weight: 4550-4850 kg
• Required power: 180/240
• Capacity: approx. 15 ha/h
• Cutting height: 40-70 mm
• Windrow width: 1.7-2.52 m
• Conditioner type: Finger steel
• Transporter type: Belt Conveyor (BC, optional)
• Swath width with BC: 2.5-3.38 m
• Transport width/height/length: 2.88 m / 4 m / 2.82 m

Standard equipment (selected)

• 3-point rigid linkage Cat. II
• Input PTO shaft with slip and free wheel clutch; double telescopic PTO; angle drive; double universal joint
• Hydraulic connection: 1x double-acting (1DA)
• Hydro-pneumatic suspension (separated left/right)
• Collision safety: CSS - Hydraulic
• Disc drive safety: DDSS with 3 brass pins
• Blade change: QCS - Quick Change System
• Patented front protection opening; hydraulic side protection folding; spare blades and safety brass pins; additional central wear skids

Model comparison (summary)
DISC HD 1000 D FSC BC vs DISC HD 1000 D FSC vs DISC HD 1100 D FSC — Working width: 9.2-10.2 m / 9.2-10.2 m / 10.05-11.08 m; Nr. of discs: 16 / 16 / 18; Weight: 4550-4850 kg / 3860 kg / 3927 kg; Power req.: 180/240 / 150/201 / 160/215.
