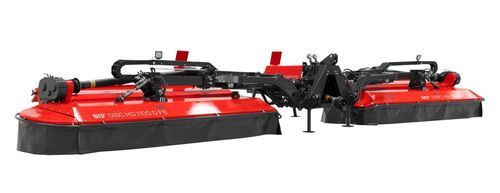

Mounted mower DISC HD 1100 D FSC

disc18 discswith shredder

Product overview
The double mowing combination DISC HD 1100 D FSC features an innovative drive and conditioning system designed for high field efficiency and simplified maintenance. Advanced components and a robust layout deliver consistent performance for professional forage operations.

Features

• ROBUST 3-POINT LINKAGE: Rigid 3-point Cat. II linkage with hydro‑pneumatic suspension (HPS) for responsive ground following.
• INNOVATIVE DRIVE SYSTEM: OMS notification system with safety clutches and sensors to monitor operation and protect cutter bars.
• WORKING WIDTH ADJUSTMENT: Telescopic arms enable swath width adjustment from 1.8 to 3.5 m.
• PATENTED MECHANICAL TRANSPORT PROTECTION: Automatically engaged mechanical transport protection for safe transport and storage.
• CONDITIONER WITH STEEL FINGERS (FSC): Flexible steel fingers damage and shred stems to accelerate moisture loss.
• SEPARATED HYDRAULIC SUSPENSION: Independent hydraulic suspension for left and right sections, adjustable from the tractor.
• SELECT CONTROL UNIT: Select Control unit available; ISOBUS ready for terminal control.
• ISOBUS SUPPORT: Terminal operation possible for tractors without integrated ISOBUS.

Serial equipment

• Hitch: 3-point rigid linkage Cat. II
• Driveline: Input PTO shaft with slip and free wheel clutch; double telescopic PTO; double universal joint; angle drive
• Hydraulic connection: 1x double-acting (1DA)
• Suspension: Hydro-pneumatic
• Collision safety: CSS - hydraulic
• Disc drive safety: DDSS with 3 brass pins
• Blade change: QCS - Quick Change System
• Other: Patented front protection opening; hydraulic side protection folding; spare blades and safety brass pins; additional central wear skids

Technical specifications

• Working width: 10.05-11.08 m
• Number of discs: 18
• Disc rotation: combined
• PTO rotation speed: 1000 rpm
• Weight: 3927 kg
• Power requirement: 160/215 (kW/hp as listed)
• Capacity: 17 ha/h
• Cutting height: 40-70 mm
• Windrow width: 2.1-2.95 m
• Conditioner type: Finger steel (FSC)
• Transporter type: / (not fitted)
• Transport width: 2.88 m
• Transport height: 4 m
• Transport length: 2.82 m
