Wheel rake STAR R 640|22 TS

side deliverybi-rotorfor tractors

Overview

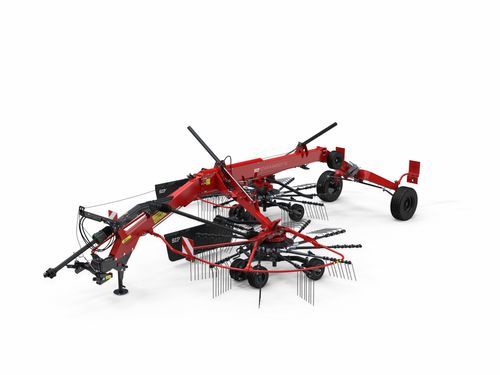

Trailed two-rotor rake STAR R 640|22 TS designed for side-swath formation. The SIP-patented walking tandem axle and 3D rotor mounting ensure stable, clean raking on uneven terrain while remaining compact for transport.

Key features

• Pivoting linkage: transport frame with 2-point pivoting hitch Cat. II and 155° steering angle.
• Robust driveline: wide-angle-joint PTO input shaft, two gears and integrated free-running clutch for smooth shutdown.
• Excellent ground adaptation: 3D rotor mounting with mechanical working height adjustment; optional mechanical spring relief for soft ground.
• Swath curtain: mechanical rear curtain adjustable approx. 0.6–1.35 m; hydraulic folding optional.
• Working width: fixed on STAR R 640|22 TS — single swath 6.38 m.
• Tandem rotor chassis for consistent ground tracking; alternative chassis with single rear wheels available.
• High rear axle for easy passage over swaths; left-wheel counterweights fitted as standard for slope stability.
• Hydraulics: STAR R 640|22 TS — 1x single-acting (1x SA) for rotor lift.
• Transport: transport width 2.5 m, transport height ≤ 4 m with tine arms fitted.

Design and operation
The tandem chassis combined with 3D rotor mounting provides uniform crop flow and reliable ground following on irregular fields. Working height is adjusted mechanically with an easy-to-read scale. Recommended PTO speed 400–500 rpm (operating at 540 rpm), power requirement 40–55 kW (55 HP). Typical capacity approx. 10 ha/h depending on conditions.

Serial equipment

• Hitch: transport frame with 2-point pivoting linkage Cat. II (serial).
• Working width adjustment: fixed (STAR R 640|22 TS serial).
• Working height adjustment: mechanical (serial).
• Hydraulic connection: 1x single-acting (1SA) (serial).
• Rotor lift: hydraulic (serial).
• Swath curtain: mechanical rear (serial).

Technical specifications

• Model: STAR R 640|22 TS
• Type: Trailed two-rotor rake (side swath delivery)
• Working width (single swath): 6.38 m
• Swath width (single): 0.6 m
• Rotor diameter: 3.15 m
• No. of double spring tines per arm: 4
• PTO speed: 540 rpm (recommended 400–500 rpm)
• Power requirement: 40–55 kW
• Capacity: approx. 10 ha/h
• Transport width: 2.5 m
• Transport height (arms fitted): 3.99 m
• Transport height (arms removed): 3.2 m
• Transport length: 8.2 m
• Hydraulic: 1x single-acting (1SA) for rotor lift
• Hitch: 2-point pivoting linkage Cat. II
