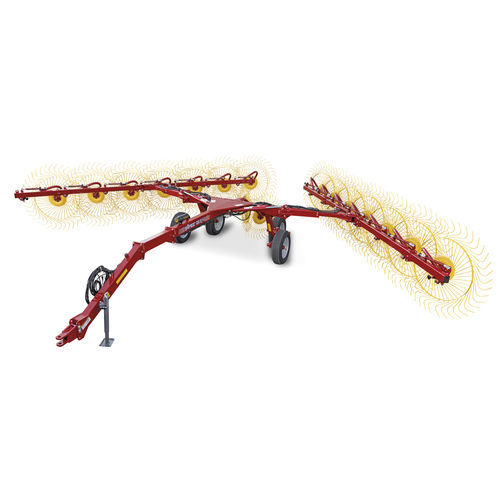

Wheel rake QRX-12

side deliverymulti-rotor

The new QRX range of "V" type wheel rakes with 12 or 14 wheels are easy to use machines that have a strong frame and therefore are able to provide excellent performance as regards both quantity and quality. Although very compact, and thus able to guarantee great maneuverability in narrow spaces and over irregular ground, and at the same time excellent quality work and great stability both while working and during transport, they have a variety of systems and devices that make them comparable to higher range machines in terms of performance, but with lower operating costs. INNOVATIONS AND ADVANTAGES The standard version has rake wheels with a diameter of 55” (1.4m) and tines with a diameter of 0.28” (7mm). As an alternative, and with no changes to the machine structure needed, it is possible to mount optional rake wheels with a diameter of 60’’ (1.52m) and tines with a diameter of 0.3” (7.5 mm). Each wheel, regardless of the diameter, is equipped with 40 tines made of top-quality spring steel.The machine can be brought from the transport position with the rake arms raised, parallel to the ground and with each other, to the position with the arms lowered and already angled correctly for working (and vice versa) by simply moving a hydraulic control from the tractor cab. This is because the machine is equipped with a special joint system that rotates on two suitably inclined axes. Thanks to this system, it is possible to reduce the overall dimensions of the machine and make it more stable. The rake arms are locked in place by a hydraulic device mounted on the cylinders so that transport can be done in complete safety.
